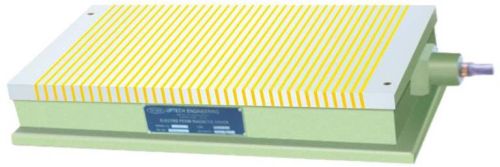

Rectangular Electromagnetic Chuck UL-715 Series, for Industrial Use, Voltage : 110V, 220V

Listing ID #1318570

We are reliable Manufacturer, Supplier and Exporter of premium Electromagnetic Chuck UL-715 Series. The chuck provided by us, is used as a holding device for surface grinding machines. The product comes at a discounted price. The chuck is made from quality components and materials, which enhances its durability.
Features

• Work holding device for surface grinding machines.
• Each pole is having separate coil, as such very strong & even
• Magnetic flux is generated.
• Accuracy as per IS : 8710 - 1978.
• Magnetic pull is 30-50% more then IS specification.
• Fine Pitch (4 + 1) makes it suitable to hold thin & small jobs.
• Mag - D - Mag with variable control unit allows to neutralize the residual magnetism precisely , using a microprocessor based control circuitry.
• Variable supply to vary power which helps in alignment & removing of warpages of thin jobs.
• Chuck is tested for Slippering force, Waterproof test, TemperatureRise test, Electrical & Demagnetizing tests.
• Also available in Longitudinal Poles.

Specifications

Sr. No. Cat No. Size (mm) Pole Gap (mm) 1 UL-71501 450 L x 150 W x 100 H 4 + 1 2 UL-71502 500 Lx 200 W x 100 H 4 + 1 3 UL-71503 600 Lx 200 W x 100 H 4 + 1 4 UL-71504 600 Lx 250 W x 100 H 4 + 1 5 UL-71505 750 Lx 250 W x 100 H 4 + 1 6 UL-71506 900 Lx 250 W x 100 H 4 + 1 7 UL-71507 600 Lx 300 W x 100 H 4 + 1 8 UL-71508 750 Lx 300 W x 100 H 4 + 1 9 UL-71509 900 Lx 300 W x 100 H 4 + 1 10 UL-71510 1000 Lx 250 W x 110 H 4 + 1 11 UL-71511 1000 Lx 300 W x 110 H 4 + 1 12 UL-71512 1500 Lx 250 W x 110 H 4 + 1 13 UL-71513 1500 Lx 300 W x 110 H 4 + 1 14 UL-71514 1500 Lx 400 W x 110 H 4 + 1 15A. "Ultra" MAG d- MAG With Variable Control Unit Upto 1000L 2 Amp.
Upto 1500L 3 Amp. 15B. "Ultra" MAG d- MAG With Variable Control Unit & Battery Back Up (20 Min) Upto 1000L 2 Amp.
Upto 1500L 3 Amp.
