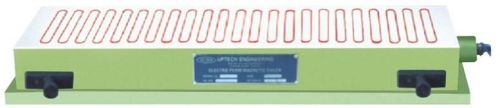

Rectangular Electromagnetic Chuck UL-714 Series, for Industrial Use, Voltage : 110V, 220V

Listing ID #1318569

22,500 / Piece

Get Latest Price

MOQ As per requirement
ApplicationIndustrial Use
Voltage110V, 220V
Power1-2kw, 2-3kw
Power SourceElectric
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Application Industrial Use
Voltage 110V, 220V
Power 1-2kw, 2-3kw
Power Source Electric
Warranty 1year
Surface Polished
Type Magnetic Chucks
Shape Rectangular

We are engaged in providing Electromagnetic Chuck UL-714 Series. Our Electromagnetic Chucks are prepared by following a qualitative manufacturing process. The Electromagnetic Chucks are prepared from quality components and material, which enhance its durability and feasibility. The chuck is suitable for carrying out big and small jobs. The chuck machine does not require a continuous source of power.
Features

Work holding device for surface grinding machines.
Each pole is having separate coil, as such very strong & even magnetic flux is generated.
Accuracy as per IS : 8710 âï¿½ï¿½ 1978.
Magnetic pull is as per IS specification.
Mag - D - Mag with variable control unit allows to neutralize the residual magnetism precisely , using a microprocessor based control circuitry
Variable supply to vary power which helps in alignment & removing of warpages of thin jobs.
Chuck is tested for Slippering force, Waterproof test,temperature rise test, Electrical & Demagnetizing tests.
We also manufacture Special chucks to suit individual requirements.
Good quality & standard electrical accessories.

Specifications

Sr. No.	Cat No.	Size (mm)	Pole Gap (mm)	Pole Pitch
1.	UL-71401	450 L x 150 W x 100 H	15	40
2.	UL-71402	500 Lx 200 W x 100 H	15	40
3.	UL-71403	600 Lx 200 W x 100 H	15	40
4.	UL-71404	600 Lx 250 W x 100 H	15	40
5.	UL-71405	750 Lx 250 W x 100 H	15	40
6.	UL-71406	900 Lx 250 W x 100 H	15	40
7.	UL-71407	600 Lx 300 W x 100 H	15	40
8.	UL-71408	750 Lx 300 W x 100 H	15	40
9.	UL-71409	900 Lx 300 W x 100 H	15	40
10.	UL-71410	1000 Lx 250 W x 110 H	15	40
11.	UL-71411	1000 Lx 300 W x 110 H	15	40
12.	UL-71412	1500 Lx 250 W x 110 H	15	40
13.	UL-71413	1500 Lx 300 W x 110 H	15	40
14.	UL-71414	1500 Lx 400 W x 110 H	15	40
15 A.	-	"Ultra" MAG d - MAG with Variable Control Unit	-	Upto 1000L 2 Amp. Upto 1000L 2 Amp. Upto 1500L 3 Amp.
15 B.	-	"Ultra" MAG d -MAG with Variable Control Unit & Battery Back Up (20min)	-	Upto 1000L 2 Amp. Upto 1000L 2 Amp. Upto 1500L 3 Amp.
