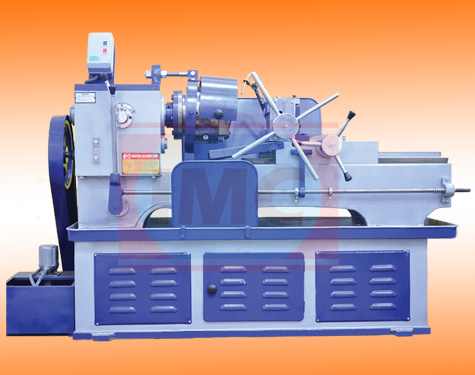

Contact SupplierRebar Threading Machine which is manufacture from Industrial Machinery Corporation is made of high quality material and requred less maintenance. The threading machine can be availed in two varieties – Bed type and Pillar type, while there are four specifications in which these machines can be manufactured. These specifications vary on the basis of things like saddle movement , spindle speed range, capacity, production per hour and requirement of power
Rebar / Bar Threading machine is manufactured with high-quality raw material. Due to this it does the noise-free operation and required low maintenance. IMC Machine is very easy to operate. Our bar Thread Cutting Machines are Running in India as well as Abroad.We have been serving every one of our customers with best of industrial machine and not just this; we have been giving excellent after deals benefit, in the event that, any of our machines face any technical issue which is extremely rare.
Rebar Threading Machine is used for Cutting External Thread on bars by Chasing method. HSS Tangential Chasers are used as cutters. Rebar remains stationery and Die Head rotates. Matric, BSP, BSPT, NPT, UNF, UNC, BSW, Acme Threads B.S.F etc. threads can be cut on this machine depending upon
REBAR THREAD CUTTING MACHINE is designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum maintenance cost. All the necessary requirements are combined in this model to form the basic fundamentals of correct threading. All the gears are made of case hardened steel with extra large face with and tooth thickness and cut on hobbing machine for noiseless operation even at high speed. Naturally, they are built with high standards of workmanship, material, and quality so closely associated with COMPANY TRADITION.
DESIGN & WORKMANSHIP:Â The Industrial Machinery Corporation thread cutting machines are designed to produce quality threads within the tolerance for which they were intended.
HEAD STOCK:Â A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.
THE BED:Â The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.
THE SADDLE:Â The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.
The APRON: The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It’s all gears are made of best quality steel.
VICE JAWS:Â The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.
Range of IMC Die Heads.
1/4″ to 1″ do/-
3/8″ to 1.1/2″ do/-
1/2″ to 2.1/2″ do/-
Specifications: | |||
Model | 1/4″ to 1″ (Bed Type) | 3/8″ to 1.1/2″ (Bed Type) | 1/2″ to 2.1/2″ (Bed type) |
Saddle Movement | 10″ | 10″ – 12″ | 12″ – 16″ |
Spindle Speed Range | 60-90 | 60-90 | 60-90-120 |
Number of Spindle Speed | 2 | 2 | 3 |
Threading Capacity | 1/4″ to 1″ | 3/8″ to 1.1/2″ | 1/2″ to 2.1/2″ |
Production per Hour | 60-80 | 60-80 | 70-90 |
H.P. Required | 3 H.P. | 3 H.P. | 7.5 H.P. |
Lead Screw | Optional | Optional | Optional |
Weight (KG) Aprox. | 500 | 550 | 990 |
