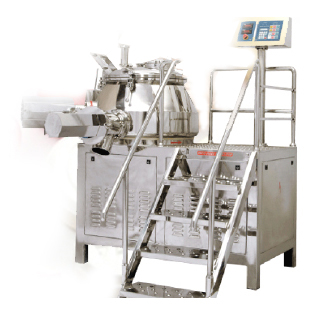

Rapid Mixer Granulator

Listing ID #3876154

Mixing Bowl & Cover: S.S. 304 bowl design in three sections i.e Flat bottom, Cylindrical mid portion and conical top portion for efficient mixing operation & provided with counter balanced lid. Lid provided with vents, view ports & charging openings.
Main Impeller & Drive: The main impeller consists of dual speed 750/1500 synchronous dual HP TEFC motor, coupled through a belt drive to a worm reduction gearbox with chain coupling. The impeller is designed to provide mixing at the bottom and at the centre of the bowl and is driven through a specially designed bearing housing that facilities inside wash facility for quick change over and also prevents leakage of powder from bottom entry and leads to longer life of gear box.
Chopper: The chopper drive consists of dual HP Dual speed (1440/2800 synchronous speed) TEFC MOTOR. The motor shaft is of S.S. and the chopper has specially designed 4 blade S.S. Impeller. The shaft is integral with the motor. The assembly mounted horizontally into the bowl.

Discharge Port: The discharge port is mounted horizontally into the bowl with vertical downward opening. The opening is operated by pneumatic cylinder and discharged can be regulated for required opening.
Mounting: A sturdy M.S. channel frame is used to house the drive assemblyat the bottom. The bowl is mounted on the top. A S.S. staircase and railings are provided for the platform. The platform is half covered with S.S, dimpled plates. For safe movement of operater and the area under the bowl is covered with S.S.
The entire body is covered from the sides by suitable S.S. covers.
NOTE: For RMG 25, Which is a lab model working platform, staircase and railing is not provided. The operator can ascess the machine from the ground level of the machine. Also the entire mounting is covered with S.S
Control Panel: The control panel is mounted on platform and is provided with

• Actuators for ON/OFF , slow , fast operation.
• Auto / manual controls.
• Timer.
• Indicator Lights.
• Ammeter/ voltmeter for both motors.
• Controls for discharge opening / closig.
• Air regulator & Pressure guage & air filter.

Optionally a PLC based control Panel can be Provided.
Main Panel: Main panel consisits of all prewired connections and it has only to be connected to the electrical supply. The circuits consists of MCCB and the relay. Wires coming our of the connections are numbered for easy recognition.
