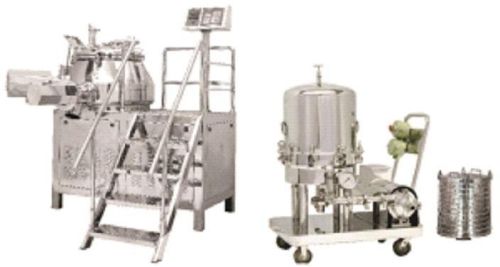

Contact SupplierPharmachem Cosmetics Industries mixer is designed to meet special needs of tablet manufacturing technology.
This is achieved by reducing processing time, more homogenous mixing, uniformly of Granule size and above all maintaining improved hyenic standards with in the highest GMP norms.
CAPACITY : 5 LTRS TO 1000 LTRS
MODEL | MG-10 | MG-25 | MG-50 | MG-100 | MG-150 | MG-250 | MG-400 | MG -600 | MG-1000 |
---|---|---|---|---|---|---|---|---|---|
Gross Volume in Liters | 10 | 25 | 50 | 100 | 150 | 250 | 400 | 600 | 1000 |
Working Volume in Ltrs | 8 | 20 | 40 | 80 | 120 | 200 | 320 | 480 | 800 |
Main Motor HP | 44960 | 44990 | 44990 | 7.5/10 | 45214 | 20/30 | 30/40 | 40/50 | 63/85 |
RPM Dual Speed | 750 / 1500 | 750 / 1500 | 750 / 1500 | 750 / 1500 | 750 / 1500 | 750 / 1500 | 750 /1500 | 750 /1500 | 750 /1500 |
Mixing Speed | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 | 75 / 150 |
Chopper HP | 38353 | 44928 | 44960 | 44960 | 44990 | 44990 | 38479 | 38479 | 45214 |
RPM Dual Speed | 1440 /2880 | 1440 /2880 | 1440 /2880 | 1440 / 2880 | 1440 /2880 | 1440 /2880 | 1440 / 2880 | 1440 /2880 | 1440 / 2880 |
Weight In Kgs | 200 | 900 | 1000 | 1400 | 1500 | 1800 | 2000 | 2500 | 3500 |
OVER ALL DIMENSIONS | |||||||||
Length | 1450 |
1440 |
1700 |
2350 |
2400 |
2550 |
2880 |
3100 |
3300 |
Width | 600 | 1000 | 750 | 1100 | 1430 | 2350 | 2450 | 2690 | 3150 |
Height | 950 | 1310 | 1400 | 1750 | 2185 | 2050 | 2275 | 2510 | 3035 |
H - 1 | 1060 | 1345 | 1600 | 1900 | 2280 | 2585 | 2960 | 3250 | 3765 |
