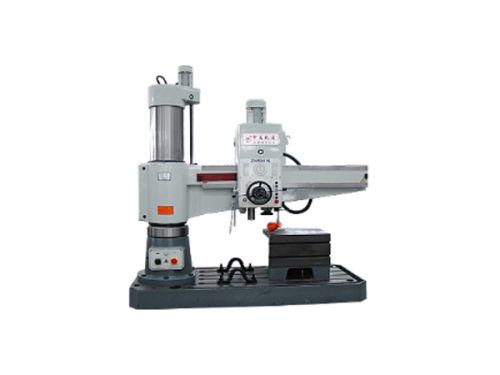

Radial Drilling Machine

Listing ID #4293192

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Introduction Optimum design conforming to international standard Flexible reliable; perfect feature High precision; high strength Economical cutting; long life Drilling, counterboring,....

View More Details

Send Enquiry

Product Details

Product Introduction

Optimum design conforming to international standard
Flexible reliable; perfect feature
High precision; high strength
Economical cutting; long life
Drilling, counterboring, reaming, boring, spotting, tapping
Major parts and critical parts are made of high strength cast and special steel material.
Heat treatment made by first-class equipment, ensuring durability.
Machining is made by means of specialized equipment, to ensure basic parts with superior quality.
Clamping for assemblies and speed-change of spindle are achieved by hydraulic power, and is sensitive and reliable. Multiple spindle speeds and feeds provide economic and high-efficiency machining.
Mechanical and electrical controls are centralized in the headstock, with convenient and rapid operation.
New painting technology and improved outward appearance reflects the specialty of machines.

Items			Z3035x10	Z3034Ax13	Z3050x16	Z3063x20	Z3080x25	Z30100x31	Z30132x42
Max. drilling diameter			35	40	50	63	80	100	132
Distance between spindle and column	Max	mm	1000	1285	1600	2000	2530	3150	4200
Distance between spindle and column	Min	mm	300	290	350	450	530	570	600
Distance between spindle end and working surface of basic plate	Max	mm	1000	1100	1270	1650	2050	2500	2560
	Min	mm	230	230	370	450	600	750	750
Spindle travel		mm	280	250	315	400	450	500	560
Taper of spindle bore			M4	M4	M5	M5	M6	M6	1:20(80)
Range of spindle speeds		R/min	40-1928	40-1500	25-2000	20-1600	16-1250	8-1000	6.3-800
Steps of spindle speeds			12	8	16	16	16	22	22
Range of spindle feeds		Mm/r	0.09-0.84	0.10-0.42	0.04-3.20	0.04-3.20	0.04-3.20	0.06-3.20	0.06-3.20
Steps of spindle feeds			6	4	16	16	16	16	16
Table size		mm		500x400	500x630	630x800	750x1000	800x1250	850x1350
Travel spindle head		mm			1250	1550	2000	2580	3600
Power of main drive motor		kW	2.2	3	4	5.5	7.5	15	18.5
Weight	N.W	kg	1600	1800	3500	7300	10500	20000	29000
Weight	G.W	kg	2100	2000	4980	10600	14500	24000	32000
Overall dimensions	L	mm	1770	2000	2500	3080	3730	4650	6075
	W	mm	800	870	1070	1250	1400	1630	2000
	H	mm	2059	2350	2880	3245	3835	4525	4850
