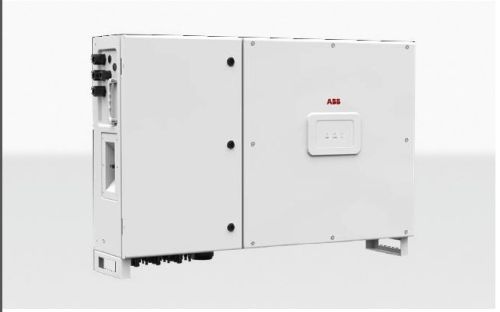

Contact SupplierThe PVS-50/60-TL is ABB’s cloud connected three-phase string solution enabling cost efficient large decentralized photovoltaic systems for both commercial and utility applications.
This new addition to the PVS string inverter family,with 3 independent MPPT and power ratings of up to 60 kW, has been designed with the objective to maximize the ROI in large systems with all the advantages of a decentralized configuration for both rooftop and ground-mounted installations.
Compact design
Thanks to technological choices aimed at optimizing installation times and costs, the product design features the power module and wiring box enclosed in a single compact chassis thus saving installation resources and costs. The inverter comes in multiple versions also allowing the possibility to connect to third-party DC string combiners.
Ease of installation
The horizontal and vertical mounting possibility creates flexibility for both rooftop and ground mounted installations. Moreover the cover is equipped with hinges and locks that are fast to open and reduce the risk of damaging the chassis and interior components when commissioning and performing maintenance actions.
Advanced cloud connected features
Standard wireless access from any mobile device makes the configuration of inverter and plant easier and faster. Improved user experience thanks to a built-in User Interface (UI) enables access to advanced inverter configuration settings. The Installer for Solar Inverters mobile app and configuration wizard enable a quick multi-inverter installation, saving up to 70% commissioning time.
Fast system integration
Industry standard Modbus (RTU/TCP)/SUNSPEC protocol enables fast system integration. Two ethernet ports enable fast and future-proof communication for PV plants. ABB plant portfolio integration Monitoring your assets is made easy, as every inverter is capable to connect to ABB cloud platform to secure your assets and profitability in long term.
Highlights
Type code | PVS-50-TL | PVS-60-TL |
---|---|---|
Input side | ||
Absolute maximum DC input voltage (Vmax,abs) | 1000 V | |
Start-up DC input voltage (Vstart) | 420…700 V (Default 420 V) | 420…700 V (Default 500 V) |
Operating DC input voltage range (Vdcmin...Vdcmax) | 0,7xVstart ...950 V (min 300 V) | 0,7xVstart ...950 V (min 360 V) |
Rated DC input voltage (Vdcr) | 610 Vdc | 720 Vdc |
Rated DC input power (Pdcr) | 52000 W | 61800 W |
Number of independent MPPT | 3 (version SX and SX2) / 1 (versione standard e S) | |
Maximum DC input power for each MPPT (PMPPT, max) | 19300W@30°C / 17500W@45°C | 23100W@30°C / 21000W@45°C |
MPPT input DC voltage range ( VMPPTmin ... VMPPTmax) at Pacr | 480-800 Vdc | 570-800 Vdc |
Maximum DC input current (Idcmax) / for each MPPT (IMPPTmax) | 36 A | |
Maximum input short circuit current for each MPPT | 55 A (165 A in case of parallel MPPT) | |
Number of DC input pairs for each MPPT | 5 | |
DC connection type | Screw terminal block (Standard and -S version) or PV quick fit connector 1) (-SX and SX2 version) |
|
Input protection | ||
Reverse polarity protection | Yes, from limited current source | |
Input over voltage protection for each MPPT | Type 2 / Type 1 + 2 (option) | |
Photovoltaic array isolation control | According to local standard | |
DC switch rating for each MPPT (version with DC switch) | 75 A / 1000 V for each MPPT | |
Fuse rating (version with fuses) | 15 A / 1000 V | |
Output side | ||
AC grid connection type | Three-phase (3W+PE or 4W+PE), grounded WYE system only | |
Rated AC power (Pacr @cosφ=1 ) | 50000 W | 60000 W |
Maximum AC output power (Pacmax @cosö=1) | 55000 W up to 30°C | 66000 W up to 30°C |
Maximum apparent power (Smax) | 55000 VA up to 30°C | 66000 VA up to 30°C |
Rated AC grid voltage (Vac,r) | 400 V480 V | |
AC voltage range | 320...480 V 2)384...571 V 2) | |
Maximum AC output current (Iac,max) | 80 A | |
Contributory fault current | 92 A | |
Rated output frequency (fr) 3) | 50 Hz / 60 Hz | |
Output frequency range (fmin...fmax) 3) | 47...53 Hz / 57…63 Hz 3) | |
Nominal power factor and adjustable range | > 0.995; 0...1 inductive/capacitive with maximum Sn | |
Total current harmonic distortion | <3% | |
Maximum AC cable | 95mm2 copper/alluminum | |
AC connection type | Screw terminal block, cable gland | |
Output protection | ||
Anti-islanding protection | According to local standard | |
Maximum external AC overcurrent protection | 100 A | |
Output overvoltage protection - varistor | Type 2 | |
Operating performance | ||
Maximum efficiency (hmax) | 0.98 | 0.99 |
CN efficiency | 0.98 | 0.98 |
Euro efficiency | 0.98 | 0.98 |
Communication | ||
Embedded communication interfaces | 3x RS485, 2X Ethernet (RJ45), WLAN (IEEE802.11 b/g/n @ 2,4 GHz) | |
Communication protocol | Modbus RTU / TCP (Sunspec compliant); Aurora Protocol | |
Remote monitoring services | Standard level access to Aurora Vision monitoring portal | |
Advanced features | Integrated Web User Interface; Display (option);E mbedded logging and direct transferring of data to Cloud | |
Environmental | ||
Ambient temperature range | -25...+60°C (-13...140 °F) with derating above 45 °C (113 °F) with derating above 45 °C (113 °F) | |
Relative humidity | 4%... 100% condensing | |
Sound pressure level, typical | 75 dB(A) @1 m | |
Maximum operating altitude | 4000 m (13123 ft) with derating above 2000 m / 6561 ft |
