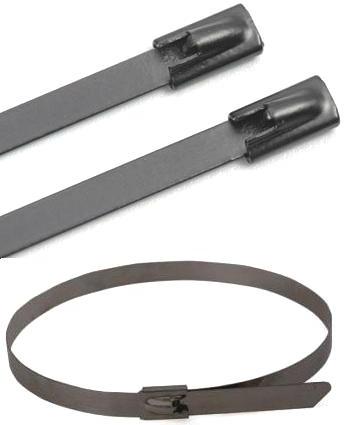

Contact SupplierPVC Coated Stainless Steel Cable Ties are Suitable for all types of cable installation, particularly for offshore units and other hostile environments. It is smooth on both sides and has a unique ball locking system design making it easy to fasten & secure items in place. The Coated version of these ties offers edge protection & prevent corrosion between metals.
Loop Tensile Strength | 4.6 mm width 450 N (100lbs.) |
---|---|
7.9mm width 1110 N (250lbs.) | |
12.0 mm width 3000 N (675lbs) | |
Operating Temperature Range | -80oC to +500oC (Uncoated) |
-30oC to +150oC (Coated) | |
Surface Finish | Uncoated Metallic and Coated Black |
Coating | Epoxy and Pure Polyester |
Flammability Rating | Fire Proof and Halogen Free |
Part No. | Width | Length | Max. Bundle Dia | |
---|---|---|---|---|
mm | Inch | mm | mm | |
RCT 110C | 4.6 | 0.18" | 100 | 20 |
RCT 115C | 4.6 | 0.18" | 150 | 35 |
RCT 120C | 4.6 | 0.18" | 200 | 50 |
RCT 126C | 4.6 | 0.18" | 250 | 75 |
RCT 130C | 4.6 | 0.18" | 300 | 90 |
RCT 136C | 4.6 | 0.18" | 360 | 100 |
RCT 145C | 4.6 | 0.18" | 450 | 120 |
RCT 152C | 4.6 | 0.18" | 520 | 150 |
RCT 168C | 4.6 | 0.18" | 680 | 200 |
RCT 184C | 4.6 | 0.18" | 840 | 250 |
RCT 100C | 4.6 | 0.18" | 1000 | 300 |
RCT 210C | 7.9 | 0.31" | 100 | 20 |
RCT 215C | 7.9 | 0.31" | 150 | 35 |
RCT 220C | 7.9 | 0.31" | 200 | 50 |
RCT 225C | 7.9 | 0.31" | 250 | 75 |
RCT 230C | 7.9 | 0.31" | 300 | 90 |
RCT 236C | 7.9 | 0.31" | 360 | 100 |
RCT 245C | 7.9 | 0.31" | 450 | 120 |
RCT 252C | 7.9 | 0.31" | 520 | 150 |
RCT 268C | 7.9 | 0.31" | 680 | 200 |
RCT 284C | 7.9 | 0.31" | 840 | 250 |
RCT 200C | 7.9 | 0.31" | 1000 | 300 |
RCT 310C | 12.00 | 0.47” | 100 | 20 |
RCT 315C | 12.00 | 0.47” | 150 | 35 |
RCT 320C | 12.00 | 0.47” | 200 | 50 |
RCT 326C | 12.00 | 0.47” | 260 | 75 |
RCT 330C | 12.00 | 0.47” | 300 | 90 |
RCT 336C | 12.00 | 0.47” | 360 | 100 |
RCT 345C | 12.00 | 0.47” | 450 | 120 |
RCT 352C | 12.00 | 0.47” | 520 | 150 |
RCT 368C | 12.00 | 0.47” | 680 | 200 |
RCT 384C | 12.00 | 0.47” | 840 | 250 |
RCT 300C | 12.00 | 0.47” | 1000 | 300 |
