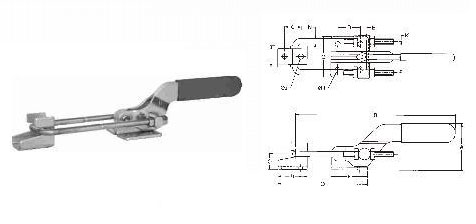

We bring forth a wide range of Pull Action Latch Clamps. The Pull Action Latch Clamps are Latch type clamps used for sealing chambers, lids, vessels etc. Horizontal Pull Action Latch Clamps are also suitable for clamping moulds in industries such as resin, fibre glass, chemicals & food. Our 'P-tech' Pull Action Latch Clamps have a unique design which enables it to use as a horizontal Pull Action Latch Clamps.
UsesSpecifications
| Item code | Models | Holding capacity | Weight | Drawing movement | Dimensions | Q Min | Q Max. | ||||||||||||
| A | B | C | D | E | F | G | H | I | K | L | N | O | |||||||
| 13401 | PPAC – 4 - H | 100 kgs | 0.1 | 46 | 29 | 120 | 11 | 16 | 20 | 26 | 30 | 20 | 4.5 | 21 | 15 | 4 | 12 | 47 | 59.4 |
| 13402 | PPAC – 5 - H | 200 kgs | 0.22 | 44 | 45 | 162 | 11 | 20 | 32 | 35 | 45 | 25 | 6.5 | 28 | 19 | 5 | 15 | 65 | 80 |
| 13403 | PPAC – 6 - H | 350 kgs | 0.35 | 50 | 50 | 190 | 18 | 25 | 28 | 40 | 45 | 32 | 6.5 | 34 | 23 | 6 | 16.5 | 105 | 140 |
| 13404 | PPAC – 8 - H | 950 kgs | 0.9 | 88 | 61 | 240 | 22 | 40 | 42 | 60 | 60 | 40 | 8.2 | 47 | 60 | 8 | 23.5 | 130 | 170 |
| 13405 | PPAC – 11 - H | 3000 kgs | 2.25 | 89 | 93 | 245 | 35 | 57.15 | 57.15 | 85 | 80 | 55 | 10.2 | 48 | 80 | 11 | 31.5 | 143 | 175 |
