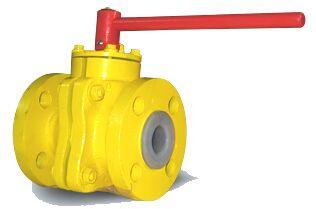

PTFE Lined Ball Valve

Listing ID #4293366

Get Latest Price

End Connection: Flanged End to ANSI B 16.5, Class 150
Design Standard: BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34
Inspection & Testing Standard: BS EN ISO 12266 – I (BS 6755 – I)
Manufacuring Size Range: 1/2″ (DN15) to 6″(DN 150)
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

End Connection : Flanged End to ANSI B 16.5, Class 150
Inspection & Testing Standard : BS EN ISO 12266 – I (BS 6755 – I)
: PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN 64
Pressure Rating of Valve : 150# / PN 10 / PN 16
: DIN Standard / JIS Standard / IS Standard
: BS 10 Table D / E / F / H
: Pneumatic Rotary Quarter Turn Actuator / Electrical Actuator
Manufacuring Size Range : 1/2″ (DN15) to 6″(DN 150)
Valve Operation : Manual Hand Lever / Worm-Gear Actuator Operated
Design Standard : BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34
Flange To Flange Distance : As Per ANSI B 16.10

ABOUT

Lined Ball Valves offer economical solutions for the vast majority of chemical applications while maintaining the highest possible degree of performance in terms of in-line leakage and fugitive emissions.

Application

  Acid & Chemicals
  Corrosive Liquids and Gases
  Hazardous Liquids and Gases
  Dry Materials
  Food / Pharmaceutical
  Viscous Liquids
  Fibrous Slurries

Features of PTFE/FEP/PFA Lined 2 Piece Design Ball Valve

  Ball with Integral Stem design construction
  Valve Design Standard confirms to BS EN ISO 17292/BS531/ASME B 16.34
  Face to Face as per ANSI B 16.10
  Flange Drilling as per ANSI B 16.5/BS 10 Table D or E
  Manufacturing Size Range 1″ to 6″
  Fully Body + Ball Lined with PTFE/FEP/PFA/Teflon®
  Body Construction in 2 Piece Construction
  Minimcum Cavity Body and Full Bore Design
  Low Operating Toruque
  Zero Leakage
  MOC option WCB/Ductile Iron/CF8/CF8M/CF3/CF3M
