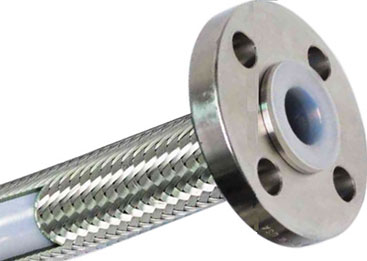

Ptfe flexible hose

Listing ID #3853426

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Features: PTFE synterized resin smooth bore tube; the low thickness assures medium permesbility values. It is very flexible and has a good resistance to impulse stresses. It has dielectricals and fire resistance properties. Reinforcement : STD: One stainless braid AISI 304. Working Tempreatures : -60 +260 Deg. C (Static -200 Deg. C). Applications: Aggressive gases having a medium permeability value. Hydraulic. Pharmaceutics. Steam for ironing & cleaning. General purpose applications.

View More Details

Send Enquiry

Product Details

Features:

PTFE synterized resin smooth bore tube; the low thickness assures medium permesbility values.
It is very flexible and has a good resistance to impulse stresses.
It has dielectricals and fire resistance properties.

Reinforcement :

STD: One stainless braid AISI 304.

Working Tempreatures :

-60 +260 Deg. C (Static -200 Deg. C).

Applications:

Aggressive gases having a medium permeability value.
Hydraulic.
Pharmaceutics.
Steam for ironing & cleaning.
General purpose applications.

DN		WALL THK	INT. DIA	EXT. DIA	PRESSURE AT 20Deg. KG / CM2		MIN. BEND RADIUS
MM	INCH	MM	MM	MM	WORKING	MIN. BURST	MM
5	3/16	0.7	5	7.6	203	810	55
6	1/4	0.7	6.35	8.8	169	675	75
8	5/16	0.7	8	11	144	576	100
9	3/8	0.7	9.5	12.1	135	540	110
10	13/32	0.7	1035	13	126	504	120
13	1/2	0.7	12.7	15.7	113	450	125
16	5/8	0.9	16	19.3	104	414	150
20	3/4	0.9	19	22.2	81	324	200
22	7/8	0.9	22.2	26.1	68	270	240
25	1	1	25.4	29.1	63	252	300
29	1 1/8	1	28.5	32.6	56	225	330
