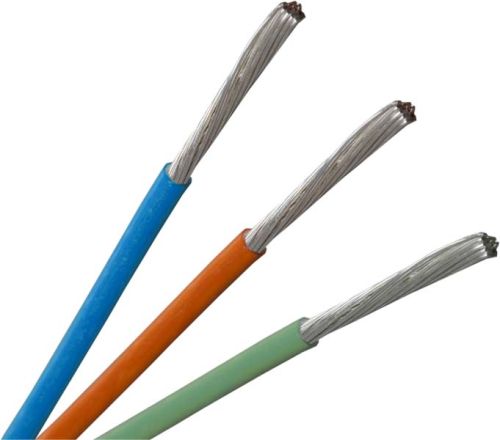

Contact SupplierUsed in high temperature zones, acidic zones & chemical areas.
Conductor :
annealed plain copper (apc)
silver plated copper (spc)
nickel plated copper (npc)
insulation : ptfe fep
shield : annealed plain copper (apc) silver plated copper (spc)
sheath : ptfe fep
standard applicable :
mil - 27500 - g - us military standard
jss - 51038.2002 - indian defence standard
jss - 51034-92
general technical parameters :
min. Bending radius : 10 x cable dia
temperature range : -650c to +2600c
insulation resistance : 2 gohms x kms
radiation resistance : 3 x 107 cjkm
tensile strength : 250 kgcm2
insulation radial thickness :
et - 250 v ac rms grade - 0.15 mm nominal
e - 600 v acrms grade - 0.25 mm nominal
ee - 1000 v acrms grade - 0.40 mm nominal
