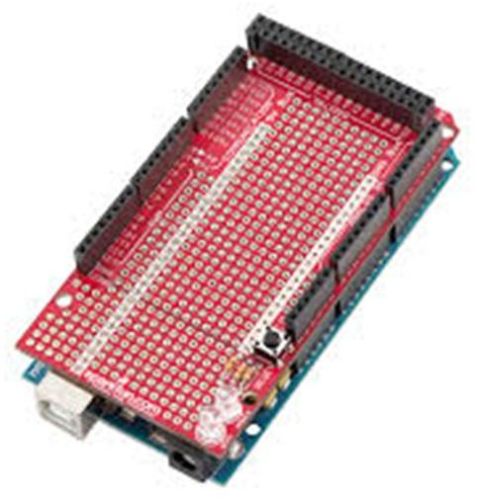

Contact SupplierThe Proto Mega Shield PCB r3 allows you to move your projects from the breadboard to on an Arduino-compatible PCB, standing on top of the board. The Arduino MEGA Prototyping Shield PCB makes it easy for you to design custom circuits for your next Arduino MEGA project. You can solder parts to the prototyping area to create your project, or use it with a small solderless breadboard (not included) to quickly test circuit ideas without having to solder. It's got extra connections for all of the Arduino MEGA IO pins, and it's got space to mount through-hole and surface mount integrated circuits if you need to as well. It's a convenient way to make your custom circuit and Arduino MEGA into a single module.
Features:
All Arduino Mega pins are brought to the top level
Supplied with headers and reset button
Multilayer PCB design
5V and GND power busses
Reset Button brought to top level
Over 300 general-purpose through-plated holes for your own parts
