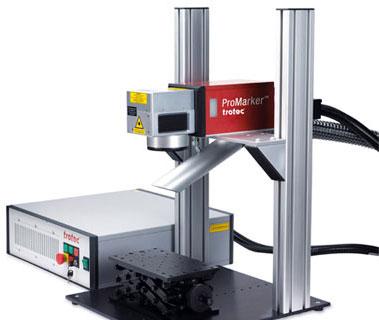

Promarker Galvo Laser Marking Machine

Listing ID #399554

promarker galvo laser marking machine, offered by us, allows laser marking at maximum speed. With our promarker galvo laser marking machine, one can mark large volumes in the shortest possible time. Marking times in the range of just a few seconds can be implemented for individual workpieces (e. G. Ball pens, lighters). Despite the fast marking speed, one can produce high-precision markings and photo-realistic engravings with the promarker. Moreover, using promarker galvo laser marking machine is as easy as an office printer. One can use the directmark printer driver to start the marking process directly from the graphics program. No intermediate step is required and the preparation effort is reduced to a minimum. One can thus save up to 80% in time. One does not require any previous knowledge for using the directmark printer driver-simply plug & play. Furthermore, precise markings on plastics and metals are also possible with our promarker galvo laser marking machine. Promarker galvo laser marking machine, provided by us, incorporates a high-precision fiber laser for laser marking metals, coated metals (e.g. Anodized aluminum) and plastics. This makes the promarker galvo laser marking machine ideal for marking advertising material, jewellery and tools. With minimal operating costs, our promarker galvo laser marking machine is considered the best in the industry. Its high-quality design makes it maintenance-free laser source and the integrated air cooling minimize operating costs that will save money on repairs. In operation, the promarker galvo laser marking machine does not need any consumables and can be connected to any power outlet. technical specifications

• dimensions of the laser head (w x d x h) : 139 x139 x 350 mm
• dimensions of the control unit (w x d x h) : 440 x 215 x 450 mm
• working area : 110 x 110 mm
• maximum marking speed : 10 ms (640 characterssec)
• laser type : maintenance-free yb fibre laser
• maximum output power : 10 or 20 watt, depending on mode
• wave length : 1064 nm ±8 nm
• repetition rate : 20 - 80 khz
• focus diameter : approx. 45 μm
• electrical requirements : 1npe ac 230v, +- 10%, 5060 hz
• power consumption : < 100 watt
• cooling system : air cooling
