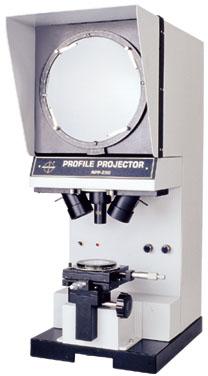

Contact SupplierWe Offer Profile Projector.
Compact Light Weight Table Top with Easy Operations. 250mm Diameter Screen with 90° Cross Line and Chart Holders. Screen is Graduated to 360° with Vernier Reading 6 Minutes. Projection Light Source with 24v 150w Halogen Lamp. Double Oblique Light Source for Surface Illumination. Two Adjustable Dichroic Reflector Lamps 12v 100w Each. Focussing Can Be Adjusted Manually By Hand Knob. High Quality Objective Lenses. Optical Distortion Below 0.15%. Standard Magnifications : 10x, Optional : 20x and 50x. Cross Travel Stage Size 125x125 Mm. Table Travel upto 35x35 Mm (with the Use of Gauge Blocks) Micro-head Standard 0-25mm, Least Count 0.01 Mm.
