General purposeThree open drain outputs, one input.
Measurement unitslbF, ozF, gF, kgF, N, kN, mN (depending on model)
PowerAC or rechargeable battery. Multi-step low battery indicator is displayed
Accuracy±0.1% of full scale
Safe overload150% of full scale (display shows “OVER” at 110% and above)
Battery LifeBacklight on
Mitutoyo (Digimatic)Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Backlight offup to 24 hours of continuous use
Set pointsThree open drain lines.
OutputsUSB / RS-232
Sampling rate14,000 Hz
Analog±1 VDC, ±0.25% of full scale at capacity,

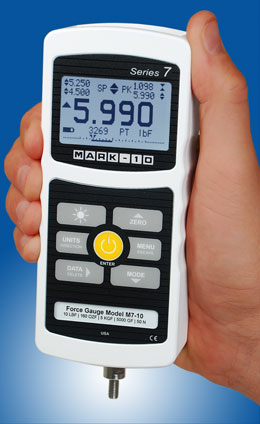

Series 7 professional digital force gauges are designed with a number of sophisticated features for the most demanding tension and compression measurement applications, up to 500 lbF (2500 N). The gauges feature ±0.1% accuracy and a blazingly fast, industry-leading sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests. Series 7 gauges include all the functions of Series 5 gauges, with several additional features, including high speed continuous data capture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz. The gauges also feature programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. Series 7 includes a coefficient of friction unit of measurement and user-defined unit of measurement. For productivity enhancement, the gauges also feature automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, external trigger, and 1st / 2nd peak detection. Series 7 force gauges are directly compatible with Mark-10 test stands, including the ESM303, to permit functions such as break testing, tensile testing, compression testing, dynamic load holding, PC control capability, and many other applications. The gauges include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.
Features:
High-speed 14,000 Hz sampling rate
Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
Individual data point memory for up to 5,000 data points, downloadable to a PC
USB, RS-232, Mitutoyo, and analog outputs
Sample break detection with auto functions, including stopping movement on the ESM303 test stand
1st / 2nd peak detection
Automatic output / data storage / zeroing upon various event completions
5 units of measurement, plus Coefficient of Friction, and user-defined unit with configurable name
Programmable footswitch command string
Programmable set points, with indicators and outputs
Averaging mode - calculates average readings over time
External trigger mode - for switch contact testing or remotely stopping display update
Password protection, configurable for individual keys and calibration
