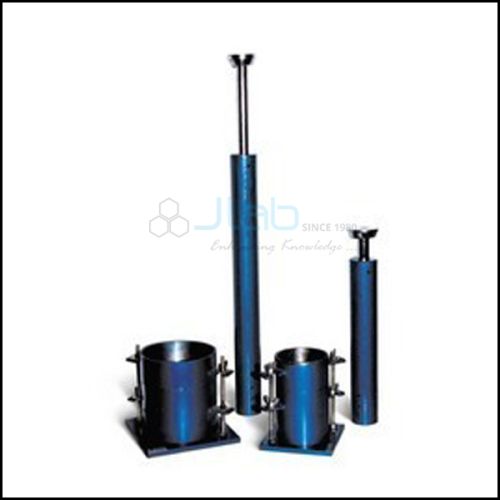

Proctor Compaction Apparatus
1000 CC :- It will be made of Mild steel having capacity of 1000 cc with an internal diameter of 100 + 0.1 mm and an internal effective height of 127.3 cm + 0.1 mm. The mould will be fitted with a detachable base plate and removable extension collar approximately 60 mm high. The internal surface of the mould will be smooth.
Light Rammer:- 2.6 Kg x 310 mm fall. A metal chrome plated rammer having 50 mm dia. Circular and weighing 2.6 kg. The rammer will be equipped with a suitable arrangement for controlling the drop to the specified height of 310 mm.
2250 cc:-It will be made of Mild steel having capacity of 2250 c.c with an internal diameter of 150 + 0.1 mm and an internal effective height of 127.3 cm + 0.1 mm. The mould will be fitted with a detachable base plate and removable extension collar approximately 60 mm high. The internal surface of the mould will be smooth.
Heavy Rammer:-4.89 Kg x 450 mm fall. A metal chrome plated rammer having 50 mm dia. Circular and weighing 4.89kg. The rammer will be equipped with a suitable arrangement for controlling the drop to the specified height of 450 mm.
