Pro EX 2.0 Modular Irrigation Controller

Listing ID #6781961

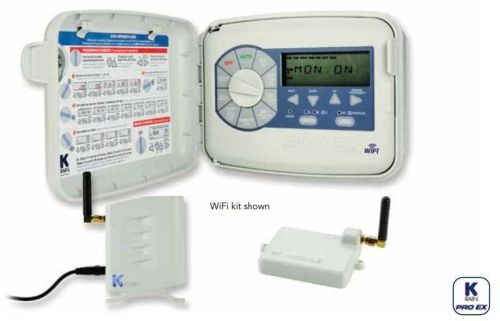

Available as a WiFi kit or WiFi enabled units.

Features

• WiFi enabled – Syncs with wifi to allow functionality through a smartphone, tablet or web browser. Weather IQ with adjustable limits. Remote access and alerts.
• Patented Full Program Display – One screen shows watering days, number of start times, number of stations and special programming.
• Flow Sensor Ready – Connects directly. Has high/low flow abort settings and provides flow data capture up to 7 days on device and full history on web browser when configured as a WiFi controller.
• Rain sensor and rain/freeze sensor ready – Allows automated operation to be controlled by sensor.
• RF Module Connector – Allows for optional installation of wireless accessories: Handheld remote, wireless rain sensor and WiFi hub.
• Diagnostic Circuit Breaker – Identifies and isolates stations with valve or wiring problems (shorts, faults, valve location) while remaining program continues.
• Hot-Swappable 4 Station Modules – Simple controller upgrades from 4 to 28 stations - with NEW 14 station module.
• Advanced Diagnostics – Visual and/or audible alerts when programming errors or other conditions have been detected and are preventing operation.
• Station Delay/Overlap Programming – Additional time between stations or dual operation for issues like well recovery, slow closing valves and water hammer.
• Large Backlit LCD Screen – Best in class visualization for all installations.
• AM/PM or 24 Hour Clock Settings – Allows user to choose the time format desired.
• Manual Start – Manual program operation at the push of a button.
• Permanent Memory – Non-volatile memory saves program during power outages.
• Buried Valve Locate Feature – Helps locate buried valves in field
• Sensor Bypass Switch – Global override of active sensor for all stations
• Master Valve/Pump Start Ready – Programming for individual station(s) operation as needed
• Valve Test Terminal (VT) – Quick and easy matching of field wires with station during installation
• Default Programming – Allows program to be saved and recalled without having to reprogram
• Permanent Day Off – Set any day of the week, regardless of programming, as a non-watering day
• Seasonal Adjust – Quick, easy global adjustment of watering times from 10-200% conserves water
• Built-in Level – Makes leveling the unit easy during install

Specifications

OPERATING SPECIFICATIONS

• Station Run Times: 1 second to 6 hours for all stations
• Number of Programs: 3
• Number of Automatic Start Times: 4 per program
• Program Watering Schedules: Custom (day of the week), Interval (1-31 days), Odd (odd calendar days), Even (even calendar days)

ELECTRICAL SPECIFICATIONS

• Power Input: 110V AC, 50/60Hz, 240V AC, 50/60Hz
• Power Output: 24V AC 1.25Amp
• Power Backup: Lithium coin-cell battery maintains time and date during primary power outages while the 4 AAA batteries allow for remote programming and LCD viewing
