Pressure Switches Integrated Connectors

Listing ID #226039

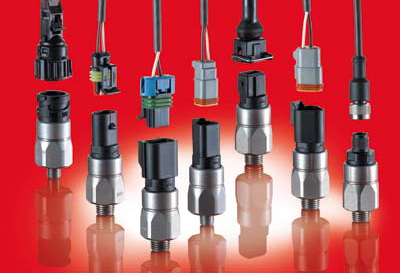

SUCO has enhanced its product portfolio with a new series of pressure switches with fully integrated connector varieties.
Until now, SUCO has already offered a membrane/piston pressure switch with an integrated bayonet connector (DIN 72585) known as type 0120/0121. This product range is now expanded with the addition of double-pole and triple-pole Deutsch-Connectors, AMP Superseal, AMP Junior Timer, Packard Metri Pack and M12 connector. SUCO also offers the counterparts to these connectors with a standardised cable length of 2 meters.
The usage of these kinds of pressure switches will considerably reduce assembly time, since the connection can be activated by a simple turning movement or by fastening the components together and latching them afterwards. The basis of these “integrated pressure switches” are the million times proved mechanical pressure switch types 0166 and 0163 (for technical specifications see www.suco.de), in which the higher sealing protection of the IP 67 standard (depending on connector) can be guaranteed.
