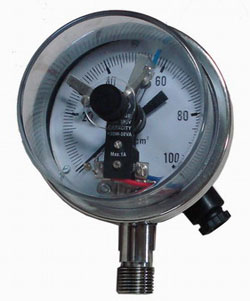

Electric contact pressure gauges are suggested where application is for control of pressure & for Audible or visible alarms. These gauges give electrical output which can be used to turn a motor onoff & similar applications. These gauges can be configured for a 1NO+1NC output or 1NO or 1NC or 2NO or 2NC output.
Specifications
4 Available in 4" (100mm) and 6" (150mm) Dial Sizes
4 Contacts: 1NO+1NC, 1NO, 1NC, 2NO, 2NC, 2NO+2NC
4 Contact Rating: 230V, 100mA
4 SS316 Bourdon and Socket, SS304 Movement
4 Stainless Steel SS304 Case and Ring IP65
4 38”, ½” bsp or npt connection
4 Mounting: Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting

Electric contact pressure gauges are suggested where application is for control of pressure & for Audible or visible alarms. These gauges give electrical output which can be used to turn a motor onoff & similar applications. These gauges can be configured for a 1NO+1NC output or 1NO or 1NC or 2NO or 2NC output.
Specifications
4 Available in 4" (100mm) and 6" (150mm) Dial Sizes
4 Contacts: 1NO+1NC, 1NO, 1NC, 2NO, 2NC, 2NO+2NC
4 Contact Rating: 230V, 100mA
4 SS316 Bourdon and Socket, SS304 Movement
4 Stainless Steel SS304 Case and Ring IP65
4 38”, ½” bsp or npt connection
4 Mounting: Bottom Direct, Bottom Surface, Back Direct, Back Panel, Back Clamp Mounting
