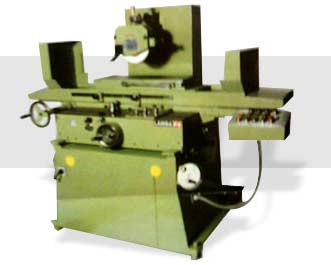

Precision Hydraulic Surface Grinder

Listing ID #2548033

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We offer Precision Hydraulic Surface Grinder with exclusively designed control units and a compact hydraulic power pack. Our Precision Hydraulic Surface Grinders are demanded in various industries....

View More Details

Send Enquiry

Product Details

We offer Precision Hydraulic Surface Grinder with exclusively designed control units and a compact hydraulic power pack. Our Precision Hydraulic Surface Grinders are demanded in various industries because of their automated working. This reduces the chance of human error. While the machine is running, the air is expelled automatically and loaded with required pressure.
Standard Accessories

Grinding wheel fitted on the spindle
Wheel range 1 set wheel guard
Set of a ten keys, spanners and puller
Electric motor and control gear for the spindle and hydraulic pump unit

Optional Accessories

Machine light low voltage
Electro-magnetic chuck
Coolant equipment complete with table and splash guards
Coolant equipment along with magnetic separator
Magnetic coolant clarified
Dust exhaust equipment
Built-in wheel dressing attachment
Mounted on the spindle housing with diamond hydraulically operated or Mechanical
Motorized vertical high speed grinding attachment with 75 mm cup
Wheel balancing stand
Additional wheel balancing flange
Radius and angular wheel forming Attachment
Plain vice Universal 3 way, swiveling vice
Swivel vice
De-magnetizer
Programmable or non programmable digital Readout systems for all axis

Technical Specifications

Model No	LPSG-6	LPSG-7	LPSG-112	LPSG-3020	LPSG-4020	LPSG-3040
Working Surface of Table (mm)	600x200	750x350	1000x350	750x500	1000x500	1000x750
Max height admitted between table and new grinding wheel (mm)	280	280	325	625	625	625
Self acting longitudinal traverse of the table (mm)	650	800	1050	825	1075	1075
Cross table traverse, hydraulic (mm)	225	350	350	570	570	820
Table traverse speed range per minute (mtrs)	1.5-18	1.5-18	1.5-18	1.5-18	1.5-18	1.5-18
Automatic cross feed range per stroke at each reversal (mm)	0.5-10	0.5-10	0.5-10	0.5-10	0.5-10	0.5-10
Size of griniding wheel (diaxwidth x bore) (mm)	250x19x76	250x25x76	250x25x76	305x50x76	305x50x76	350x62x76
Speed of the wheel (rpm)	2400	2400	2400	2000	2000	2000
Power of wheel head motor (kw)	1.5	2.2	3.7	3.7	3.7	5.5
Power of hydraulic pump motor (kw)	0.75	1.5	1.5	2.2	2.2	3.7
Power of rapid vertical traverse motor (kw)	0.37	0.37	0.37	0.37	0.37	0.37
Net weight approx (kgs)	1775	2400	3000	3800	4000	5000

Note : All dimensions are approximate and illustration are not binding as to detail. We always endeavor to improve design from time to time with a view to solve difficult problems for handling jobs in a modern workshop.
