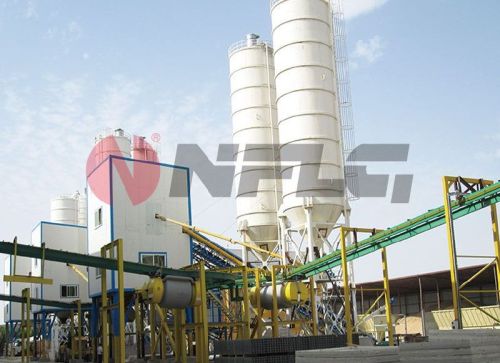

Precast Concrete Plant

Listing ID #4336502

Get Latest Price

Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

Preform-only Mixing Station (plant) developed by South can be applied to small-and -medium construction projects, preform plant and commercial concrete producer. The types are: HZS50, HZS75, HZS100 and HZS150. And the biggest productivity reaches 150m3/h theoretically.

View More Details

Send Enquiry

Product Details

Model	HZS50	HZS75	HZS100	HZS150
Design production capacity（m3/h),for normal ready mixed concrete	50	75	100	150
Planetary mixer	Planetary mixer	Planetary mixer	Planetary mixer	Planetary mixer
Mixer model	JN1000	JN1500	JS2000	JS3000
Power（kW）	45	55	75	110
Output capacity(L)	1000	1500	2000	3000
Aggregate size(mm)	≤60	≤60	≤60	≤60

Twin shaft mixer	Twin shaft mixer	Twin shaft mixer	Twin shaft mixer	Twin shaft mixer
Mixer model	JN1000	JN1500	JS2000	JS3000
Power（kW）	18.5x2	30x2	37x2	55x2
Output capacity(L)	1000	1500	2000	3000
Aggregate size(mm)	≤60	≤60	≤80	≤80

Aggregate dosage hopper（ semi-under ground m3）	15x4	15x4	20x4	30x4
Inclined beltconveyor carrying capacity(t/h)	450	450	500	600
Weighing range and accuracy	Weighing range and accuracy	Weighing range and accuracy	Weighing range and accuracy	Weighing range and accuracy
Aggregate scale（kg）	（400-1200）±2%	（600-1800）±2%	（800-2400）±2%	（1200-3600）±2%
Sand scale（kg）	（250-800）±2%	（400-1200）±2%	（500-1600）±2%	（800-2400）±2%
Cement scale（kg）	（200-600）±1%	（300-900）±1%	（400-1200）±1%	（600-1800）±1%
Fly ash scale（kg）	（60-200）±1%	（100-300）±1%	（130-400）±1%	（200-600）±1%
Water scale（kg）	（100-300）±1%	（150-500）±1%	（150-500）±1%	（250-800）±1%
Liquid additive scale（kg）	（15-50）±1%	（15-50）±1%	（15-50）±1%	（15-50）±1%

Total power consumption（kW）exclude screw conveyor,silo	105	125	140	200
Discharging height （m）	as per real situation	as per real situation	as per real situation	as per real situation

Company Details

Established in 1991, SOUTH Machinery Co., Ltd. (hereinafter referred to as SOUTH) is a leading enterprise in the field of China’s mixing engineering machinery. SOUTH possesses the fixed assets of over 190 million RMB, with over 1200 staff in total. SOUTH is a professional international company focusing on the development, manufacturing and service of mixing plants and providing integrated solutions for the mixing plant industry chains. The main businesses of SOUTH cover mining design, mining and crushing of construction materials, manufactured sand production lines, solid waster processing machinery and engineering mixing plant industry chains.
