Contact SupplierWe are one of the known manufacturer, exporter, and supplier of Pre Cleaner from Nizamabad, Telangana, India. Our machine is high in demand because of its capacity to process all kinds of fabric. The offered machine is very strong, durable, non-polluting, user-friendly, and is available with us at a reasonable rate. Our product has its application in numerous agricultural works. We accept bulk orders and ensure timely delivery.
More Details

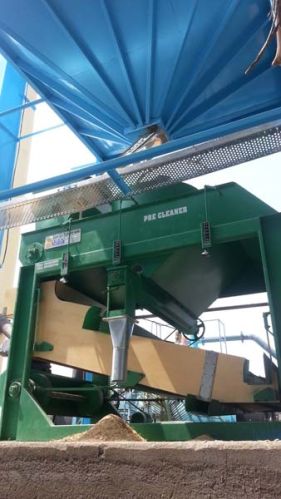

The Zaheer Agro Pre-Cleaner Type ZP is intensed to Master the pre-cleaning at intake plants. The ZP is also to dress malting barely and milling grain to the highest quality commercial sample at a reduced throughput.
With inler with feed roll, pre-as piration, tail aspiration and waste outlet on the right hand side (While viewing from feed end).
with one sieve boat with one short screen layer (1 screen partm) one long grading screen layer (2 screen parts) and one long sand screen layer (2 screen parts).
with built-on fan, firm drive and motors.
incl. One set of screens (field perforated) + ball frames.
Capacity are bassed on wheet at max 18% moisture content and may very depending on the amount of waste material.
Technical Data - Type ZP |
UOM |
ZP-4 |
ZP-6 |
ZP-8 |
---|---|---|---|---|
Screen Size = 925mm x W mm |
mm |
600 |
1005 |
1505 |
Screen Area |
m2 |
5.00 |
7.00 |
10.50 |
Motor, Fan |
HP |
5.00 |
7.5 |
7.5 |
Motor, Sieve boat |
HP |
1.5 |
1.5 |
2.0 |
Air Volume |
m3/hr |
6500 |
8000 |
8000 |
Cyclone dia (Not in our scope) |
mm |
1000 |
1200 |
1400 |
No. of Rubber Balls/Machine |
Pcs |
480 |
588 |
1043 |
Length of Bottom Frame |
mm |
2760 |
2760 |
2760 |
Width of Bottom Frame |
mm |
920 |
1220 |
2200 |
Machine Ht. Withour Fan |
mm |
2560 |
2560 |
2560 |
Fan Height |
mm |
715 |
715 |
715 |
Capacity* Pre Cleaning on Wheat |
Ton/Hr |
6-10 |
15-20 |
30-40 |
Capacity* Pre Cleaning on Paddy |
Ton/Hr |
3-5 |
8-10 |
12-15 |
