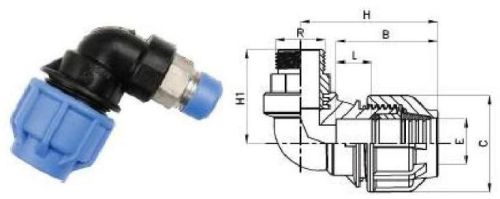

Contact SupplierOur Metal Insert Elbow with Male Threaded Offtake is manufactured using superior quality SS 304 material. Metal Insert Elbow with Male Threaded Offtake is available in various sizes such as 20x1/2", 25x3/4" and 32x1. Metal Insert Elbow with Male Threaded Offtake conforms to the BSPT/IS 554/ISO 228. We offer fittings along with nickel plated brass insert.
Size |
Code |
G |
Sp |
B |
C |
E |
L |
H |
H1 |
---|---|---|---|---|---|---|---|---|---|
20x1/2" |
2022601010 10 101 |
106 |
100 |
53 |
45 |
21 |
20 |
67 |
58 |
25x3/4" |
2022603010 101 |
144 |
75 |
60 |
53 |
27 |
23 |
77 |
54 |
32x1" |
2022604010 10 101 |
232 |
40 |
69 |
65 |
34 |
25 |
93 |
64 |
Threads as per BSPT/IS 554/ISO 228
Note : Fittings can also be supplied with nikel plated brass insert subject to mutually agreed quality
