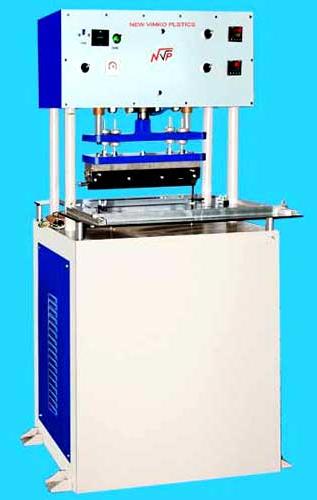

Contact SupplierSalient Features: This machine is designed for creasing the folding line on P.Pstationery items like files,folders etc. The toggle press is fitted with pneumatic cylinder to generate high pressure so that hydraulic power pack is eliminated. The bottom plate and top die plate temperature are adjustable to suit various thickness and type of materials. The temperature controlled die coupled with high pressure forms the folding line on P.P sheets. Timer and material placement gauges are provided for consistency in production. Guard is provided on the press for safety of operator. Cartridge heaters are easily changeable. Heavy and Light duty machines available electronic components are R.F interference free.
SPECIFICATIONS | |
---|---|
Inputs | 3.5KVA at 230 V, 50hz single phase |
Heaters | 3000 watts |
Timer | 0-12 secs |
Compressed air reqt | 375 lts/min. at a pressure of 6kg/Sq.cm |
Dimensions mm | L=780 mm W=680 mm H=1800 mm |
Unpacked Weight | Approx. 350 kg |
