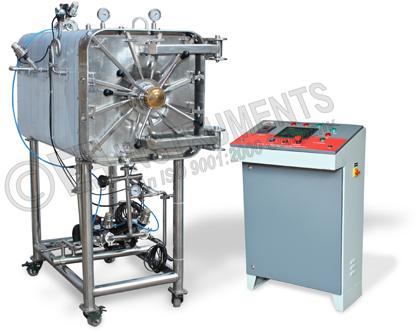

EIE stainless steel material high pressure steam sterilizer, Color : Powder coating

Listing ID #1941450

We are offering process management system (in-built programs)
the sterilizer is designed to perform a wide range of test and production programs to meet the latest regulatory requirements. Following test cycles can be carried out during the operation
1) gravity cycle (slow exhaust cycle) - for sterilization of media in open containers
2) component & garment cycle
3) chamber leak test cycle
4) bowie & dick test cycle
temperature and pressure sensors
two temperature sensors will be provided; one inside the chamber and one at drain outlet. Inputsoutputs of all sensors and electronic parts are monitored, processed and controlled by plc and hmi for accurate data processing.
A pressure transmitter is connected to the inside chamber. All utility lines to be provided with a pressure switches for generating an alarm in case of utility failure.
electrical switchgear
the control cabinet to be provided with a main isolator for the three-phase supply and a separate switch for the control supply. The fascia of the control panel is provided with indication led’s and switches for operation. Switchgear make : schneider
control panel
control system will be equipped with user friendly touch screen - hmi as a front end user interface. The panel will also be equipped with following attributes for pc and printer interface
1) rs 232 port for pc communication (supplied without pc)
2) in-built real time clock with date and time function
3) an operator will be able to print data recording - date, time, process parameters, process status, alarms etc on dot matrix printer (supplied without printer)
safety features
the unit will be provided with a series of safety and alarm features as per following
1) cycle over
2) enough time to create vacuum
3) pressure achieve safety cycle
4) utility failure alarm
5) absence of sharp corners
6) no welded parts
