Pour Point Tester

Listing ID #4171401

Get Latest Price

ISO 3016Petroleum Products - Determination of Pour Point
IP 441Determination of the Pour Point of Crude Petroleum
ASTM D97Standard Test Method for Pour Point of Petroleum Products
ASTM D5950Standard Test Method for Pour Point of Petroleum Products (Automatic Tilt Method)
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

ASTM D5950 Standard Test Method for Pour Point of Petroleum Products (Automatic Tilt Method)
ASTM D97 Standard Test Method for Pour Point of Petroleum Products
ASTM D5853 Standard Test Method for Pour Point of Crude Oils
ISO 3016 Petroleum Products - Determination of Pour Point
IP 15 Petroleum Products - Determination of Pour Point
IP 441 Determination of the Pour Point of Crude Petroleum

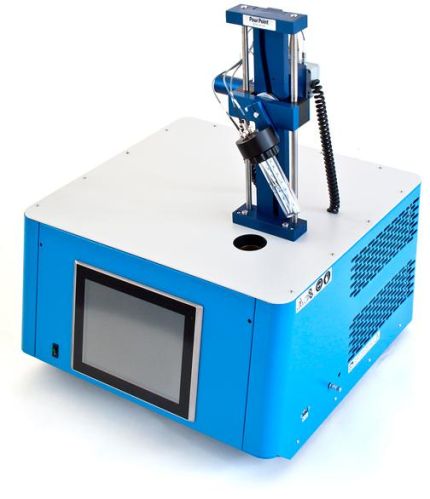

Ducom’s DPP offers precise, fully-automated pour point testing of crude oils, engine oils, additives, lubricating oils and other petroleum products.

The DPP features an automated, mechanical arm that lifts and tilts the test jar with incredible accuracy. It is also equipped with Ducom’s innovative software system, which can manage up to six analytical heads with ease and delivers customizable reports and graphs at the touch of a button.

Key Features:

Integrated Touchscreen Panel PC: 12-inch, TFT/LCD, high-resolution display
Automated Operation: Delivers precise, consistent results, decreasing the risk for human error
User-Friendly Software Interface: Customize analysis parameters and methods
Storage Capacity: Record, save and store data files in an Excel-compatible format

Measuring Parameters	• Temperature: °C/°F • Measuring Range: +80°C to -80°C • Resolution: 0.06°C • Accuracy: ±0.1°C • Repeatability/Reproducibility: as per standard methods or better
Temperature Measurement	• PT100 Class A
Electrical Supply	• 220V ± 15% / 50 to 60 Hz • 115V ± 15% / 60 Hz
Measuring Pour Point Devices	• Mechanical arm adjusts the position of the test jar
Cooling System	• Integrated CFC-free motor compressors: - Single stage (for temperatures up to -40°C / 1) - Double stage (for temperatures up to -80°C / 2) • Equipped with an automatic energy power save system
Safety Devices	• Pressure controller for compressor • Thermo-switch for each cooling/heating jacket • Compressors equipped with internal overload devices
Dimensions (LxWxH) and Weight	• 1 test position: 66 x 60 x 80 cm, 60 kg (up to 6 heads available)
