Post Forming Machine

Listing ID #4337540

  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

NS MNL Post forming machine is very user friendly and totally maintenance free machine.It is used to paste the mica on the profiled Edges of Table Tops, Kitchen Shutters, Drawer Fronts and various....
View More Details
Send Enquiry

Company Information

  • Member Since 9 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

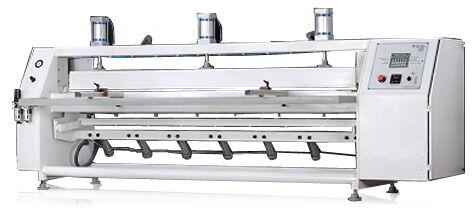

NS MNL Post forming machine is very user friendly and totally maintenance free machine.It is used to paste the mica on the profiled Edges of Table Tops, Kitchen Shutters, Drawer Fronts and various types of office furniture items. A hard chrome plated forming bar equipped with 3 KW heater for smooth finished pasting. Automatic stopper for the job is help to work on the machine for single operator PLC is fitted on the panel with 12 button display for operator to work in AUTOMATIC mode or MANUAL mode. More than 20 programs can be store in the PLC for different profiles. Temperature controller is fitted in the panel to maintain the set temperature. One selector switch is fitted in the panel to select 7 cylinders working at one time for 8 Feet long jobs and to select 3 cylinders working for small jobs. Very strong and rigid fabrication to avoid the vibrations equipped with MCB to prevent the electric shock to the operator.


TECHNICAL SPECIFICATIONS
POST FORMING MACHINE Model no. NS-247-8PL
Maximum Length of work piece 2500mm
Thickness of work piece 12-110mm
Pneumatic pressure required 7bar
Driver motor power 1hp
Forming bar control PLC
Control type Automatic
Heating element 3kw
No. of programs storage 20nos.
Adjustable speed of forming bar Programmable
Machine weight 750kgs
Gross weight 1050kgs
Machine dimensions (L x B x H) 3500x900x1550mm
Packing dimensions (L x B x H) 3600x1000x1700mm
