Lifeplus Oxygen Concentrators

Listing ID #4438188

  • TypePortable
  • ConditionNew
  • Warranty1 Year
  • MaterialMetal
  • Supply Type Supplier
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

  • Member Since 9 Years
  • Nature of Business Retailer
  • GST No. 29ANQPM9975P1ZF

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Type Portable
  • Condition New
  • Use Medical
  • Finishing Polished
  • Warranty 1 Year
  • Material Metal

NewLife Elite — Economical Stationary Oxygen Concentrator
The NewLife® Elite low power consumption concentrator delivers up to 5 LPM of therapeutic oxygen in home, hospital, and clinical settings. Flow lockdown and other unique features make this easy to maintain, durable concentrator of choice among today's patients and equipment providers. Units are available with an optional 02 monitor and an exclusive economy mode (only available with this option) to provide the efficiency of a 3 LPM unit. Units can also be equipped with a pediatric flowmeter for use with infants and other patients prescribed for low liter flow (0.125-2 LPM). The Air Outlet option enables the unit to deliver medicated nebuli*r treatments while simultaneously providing supplemental oxygen.
NewLife' x' Intensity Series — Power-Efficient Oxygen Concentrators up to 10 LPM
The NewLife® Intensity series combines high pressure with high flow to create up to 10 LPM, operating up to 590 watts for reduced power consumption. With an outlet pressure approximately three times higher than most other concentrators, these units are designed to serve special applications, such as with the use of large volume jet nebulizers, venti-masks, medication nebulizers, and long oxygen tubing runs. NewLife Intensity concentrators simplify a tracheostomy set-up by eliminating the need for a separate external compressor. Administer humidified oxygen to a trach patient by connecting a jet neb bottle to Intensity's 02 outlet. NewLife Intensity dual flow units can provide additional power savings by delivering oxygen to two patients simultaneously up to a combined total flow of 8 or 10 LPM with one unit.
These easy to maintain concentrators offer an outlet pressure of 20 psig (138 kPa) and a flow capacity of up to 8 or 10 LPM in a single or dual flow configuration. NewLife Intensity's are the most highly rated units for use in developi ng countries and tropical climates. NewLife Intensity when combined with the SureFlowim Oxygen Flow Station (a flow splitter with 5 flowmeters) can supply the oxygen needs for a pediatric ward in a remote district hospital.
Features

  • High flow concentrators with essential pressure
  • Single or dual flow (for two patients)
  • Low flowmeter blocks for pediatric and other low flow applications
  • Optional oxygen monitor to verify concentration
  • Smooth, quiet, power-efficient operation
  • NewLife Elite has an optional air outlet for nebulizer treatments.



Based on an atmospheric pressure of 14.7 psia (101 kPa) at 70 Deree F (21 Degree Celsius). Operating unit outside of operational temperature range can affect performance.
Warranty: A variety of warranty options available.
International approvals: Newlife Elite: CE 0459, CSA (canada) , IEC-601-1, ISO 8359, ISO 9001-2008 certifiied. Newlife Intensity Series: CE 0459, CSA ( Canada), ISO 13485, ISO 9001:2008 and ISO 13485:2003 certified.

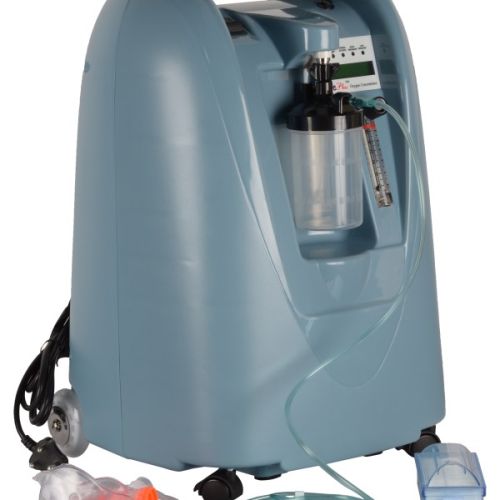

The New Life Plus oxygen concentrator is one of the most efficient, quietest, lightweight , high purity of 5 liter oxygen concentrator in the market today. It is designed with all the best quality Medical grade components.
Features

  • LCD Display
  • Low cost of oxygen production
  • No other raw material needed except Air.
  • High purity of oxygen
  • Adjustable flow meter. 0-5LPM
  • Secure and reliable operation
  • Low Power Consumption
  • Low noise operation.
  • High / Low /Normal Pressure Alarm & Indicator
  • Handle for Easy Carrying.


Rapid Pressure Swing Absorption (RPSA) Process- NASA derived technology. High Quality Medical Grade Molecular Sieves ABS injection moulded cabinet which is high in strength and durability. Flow Control Knob allows you the ability to protect your patient from the harmful effects of exceeding prescribed oxygen level. 0.04-0.07 MPa (Upto 10 PSI)oxygen output pressure allows the patient the freed. longer tubing without restricted the flow. Quiet Unit-allowing restful sleep to patients. Built in atomizer device for atomizing therapy (Nebulization Therapy).


Technical Specificatio 01

  NewLite Elite NewLite Intensity Series (8 and 10 LPM)
Oxygen Concentration 1-3 LPM:95.5%-92.0% 8 LPM:2-7 LPM:92%±3;8 LPM:90%±3
  4 LPM:92%±3% 10 LPM:2-9 LPM:92%±3;10 LPM:90%±3
  5 LPM:90%±3%
Oxygen Outlet Pressure 7-9 psig (48-62 kPa) 20 psig (138 kPa)
Dimensions 28.5 in. Hx15.7 in. Wx14.5 in. D 27.50in. Hx16.5 in. W x 14.5 in. D
  72.4 cm H x 40.0 cm W x 36.8 cm D (69.9 cm Hx41.9 cm W x 36.8 cm D)
Weight 54 Ib; shipping weight-64 Ib 8 LPM: 54 Ib (24.5 kg)
  (24.5 kg. Shipping weight-29 kg) 10 LPM: 58 Ib (26.3 kg)
Power 120V, 60 Hz, 4 amps 8 LPM:120V, 60 Hz;220-240 V, 50 Hz; 220-240 60 Hz
  220-240 V, 50 Hz 2 amps 10 LPM: 120V, 60 Hz, 220-240 V, 50 Hz
  220 V, 60 Hz, 2 amps
Power Consumption 350 watts 8 LPM:410 watts
    10 LPM:590 watts
Alarms Battery test, poer failure, High and Low pressure, Low concentration (with optional oxygen monitor) Battery test , high temperature, power failure, high and low pressure, Low concentration (with optional oxygen monitor)

Odering Information

Description Catalog Number
120V, 60Hz unit AS005-1
220 V, 60 Hz unit AS005-3
120 V, 60 Hz unit ( W/ Ogen Monitor) AS005-4
220-240 V, 50 Hz unit AS005-502
220-240 V, 50 Hz Unit, Single Flowmeter AS094-102
220-240 V, 60 Hz Unit, Single Flowmeter AS094-104
120 V, 60 Hz Unit, Single Flowmeter, Oxygen Monitor AS094-101
220-240 V, 50 Hz Unit, Single Flowmeter, Oxygen Monitor AS094-103
220-240 V, 60 Hz Unit, Single Flowmeter, Oxygen Monitor AS094-105
NewLife Intensity 8 LPM
120 V, 60 Hz Unit, Dual Flowmeters AS094-1
220-240 V, 50 Hz Unit, Dual Flowmeters AS094-7
220-240 V, 60 Hz Unit, Dual Flowmeters AS094-61
120 V, 60 Hz Unit, Dual Flowmeters, Oxygen Monitor AS094-4
220-240 V, 50 Hz Unit, Dual Flowmeters, Oxygen Monitor AS094-10
220-240 V, 50 Hz Unit, Dual Flowmeters, Oxygen Monitor AS094-10
220-240 V, 60 Hz Unit, Dual Flowmeters, Oxygen Monitor AS094-64
120 V, 60 Hz Unit, Single Flowmeter AS094-100
NewLife Intensity 10 LPM
120 V, 60 Hz Unit, Dual Flowmeters AS099-1
120 V, 60 Hz Unit, Oxygen Monitor, Dual Flowmeters AS099-4
220 V, 50 Hz Unit, Dual Flowmeters AS099-7
220 V, 50 Hz Unit, Oxygen Monitor, Dual Flowmeters AS099-10
120 V, 60 Hz Unit, Single Flowmeter AS099-100
120 V, 60 Hz Unit, Oxygen Monitor, Single Flowmeter AS099-101
220 V, 50 Hz Unit, Single Flowmeter AS099-102
220 V, 50 Hz Unit, Oxygen Monitor, Single Flowmeter AS099-103

Technical Specificatio 02

Oxygen flow Rate (L/min) 0-5- LPM
Oxygen Concentration Purity (%) >93%
Net weight (kg) 14.3kgs
Sound Noise level dB(A) <45dB A
Filter Gross Particle Cabinet Filter Compressor Intake Filter Bacterial Filter
In Built Purity meter with Audio & Visual Alarm (Optional)
Power Consumption 240 W
Power Failure Alarm yes
Low/ High/ Normal Pressure Alarm yes
Size (mm) 610 (H)x300(W)x305
Oxygen delivery pressure (Mpa) 0.04-0.07Mpa (Upto 10 PSI)
Power AC 220±10%, 50Hz

Catalouge 01


Download Detail File : Click Here

Catalouge 02


Download Detail File : Click Here
