Contact Supplierthe portable hydraulic riveting machine is mainly used in all kinds of industry for riveting & pressing etc. Applications - automobiles & automobile component manufacturers.

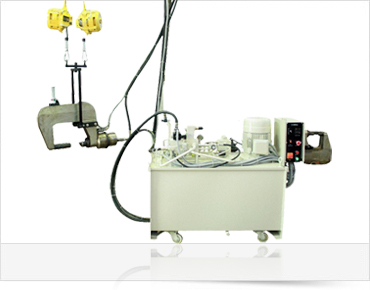

the portable hydraulic riveting machine consists of hydraulic intensifier, riveting clamp mechanism, sling, balancer, high pressure hose , it can be placed in any convenient location as close to the work unit as practical. If desired, the intensifier can be mounted overhead.
special high-pressure hose, furnished with orbital intensifier for use between the intensifier and the portable unit. Available lengths of 15 feet (option 20 feet).
Nominal Riveting Force (Ton) |
The Inside diameter of oil cylinder (mm ) | Stroke (mm) |
The diameter of piston rod (mm) |
Riveting die mounting hole (mm) |
The neck diameter of oil cylinder (mm) |
The length of neck (mm) |
The diameter of rivet (mm) | |
cold riveting | hot riveting | |||||||
30 | 110 | 120 | 50 | 25 | 80 | 155 | 12 | 20 |
