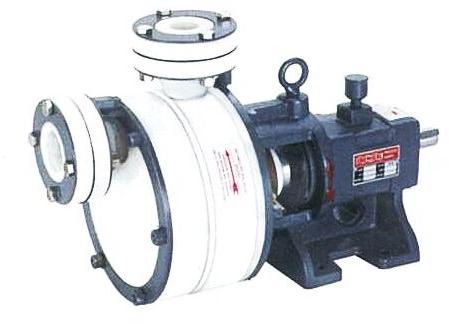

Polypropylene Pump

Listing ID #4047869

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

UniBoost Chemical Process Pump is a horizontal single stage centrifugal pump in stainless steel 316 and polypropylene materials. Polypropylene Volute casing Three piece with full metal back....

View More Details

Send Enquiry

Product Details

UniBoost Chemical Process Pump is a horizontal single stage centrifugal pump in stainless steel 316 and polypropylene materials.

Polypropylene Volute casing

Three piece with full metal back plate support self venting volute casing with companion flange end connection. Volute casing opens towards allows easy withdrawal of the bearing frame without disturbing the pipe work when using a spacer coupling and no realignment is necessary.

Impeller

Semi-opened radial impeller specially designed for low NPSH requirement. Hydraulic balance by back vanes. Reliable fixing of impeller on the shaft by impeller nut and positive locking of impeller nut by means of threaded insert.

Shaft

Single piece heavy duty shaft in full SS 316 material. All critical surface ground to less than 0.8 micron. Threads were shaft screws into impeller are sealed by teflon ‘0’ ring.

Shaft Sleeve

Available with Hastelloy, Alloy 20, Teflon, SS 316 as per liquid specification

Shaft Sealing

Supplied with either packing or mechanical seals in stuffing box. External cooling provided for longer sealife.

Bearing

Inboard bearing is single row, deep groove. Outboard bearing is double row, deep groove angular contact. Bearing is pressed on shaft and free to float axially in frame carries redial load only. Both bearing size are for two year minimum life.

Bearing Frame

Sturdy cast iron construction provides rigid bearing alignment and shaft support.

Features :

> Metal support piping loads without any strain on

suction and discharge nozzle

> Detachable suction and Discharge branch, save the

expensive casing replacement cost.

> Solid Injection moulded impeller and back plate

> Shaft is well protected by a confirmed PTFE sleeve

Company Details

Since 1955, Union Enterprise, manufactures and markets pumps and equipment for industrial, Building services, Water treatment, Marine, Automotive & Process Industry use under its Uniboost brand. UniBoost is the right partner of every company around the world because it is able to respond quickly and efficiently to the rapid market trends. The wide range of pumps produced, the well-established experience in the field and the continuous production quality improvement, summarize the potential fielded by the Company. In the international pumps market, UniBoost Pump is synonymous with high-tech solutions.
UniBoost takes care of the customers need by supplying them the quality products as per international standards. In pursuit of excellence, UniBoost will adopt practices that support conservation, sustenance and reservation of natural resources. This could be achieved by educating our people, continual improvement of technology and application of research. The basis of our existence is to successfully develop, produce and sell high-quality pumps world-wide, contributing to a better quality of life and a healthy environment.
Design and production are all made internally at Union Enterprise Pvt. Ltd. facilities, with a quality and process systems in accordance to the ISO9001 standards. We shall help to industries to improve their productivity & profitability by timely delivery of high quality, energy efficient pump. These pumps cover a broad range of applications and even wider variety of configurations. UniBoost pumps have applications across entire industries such as:
Water Treatment / Waste Water
Chemical & Process
Domestic / Commercial Building
Water Supply / Service
Agriculture
Chemical & Process
Food & Beverage
Heating & Air Conditioning
Pharmaceutical
Marine
Cement/ Steel/ Mining
Paint
Petroleum Industries
Domestic / Commercial Building
Boiler feed
