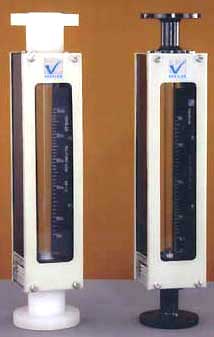

Polished Glass Tube Rotameter, Feature : Easy To Maintain, Online Installation

Listing ID #1382428

Our Glass Tube Rotameters are manufactured from high grade materials that ensure high durability. These Glass Tube Rotameters are appreciated for their superior performance and exact results in the global market. In order to attain utmost client satisfaction, we provide Glass Tube Rotameter in varied specifications to the customers.
Features :

• Accuracy better than +/ -2% of full scale
• Overall length of 500 mm and 350 mm (for Low Range) in flanged versions
• End connections can be rotated through 360 Deg
• Connection orientation
• Top & Bottom, rear, bottom and rear, rear and top
• Tube can be changed without disconnecting the meter from the line
• Detachable scale with flow in customers engineering units
• Standard interchangeble floats for a given size
• Adjustable packing gland
• Wide choice of flow ranges for individual requirement
• Sturdy metallic construction to withstand pipeline stress and vibration
• 1/2" to 4" Line size and max flow upto 30000 LPH for online installation
• Optional high and low alarms
• Material of Construction
• Borosilicate Glass Tube
• SS 304/SS 316/Teflon Floats
• CC, MS, SS 304, SS 316, Rubber lined PTFE lined End Fittings, threaded or Flanged (ASA 150 #, BS 10 Table D/E or as per customer's requirement)
• Neoprene/ Teflon/ Silicon/ Viton Packing
• MS/ CS Powder coated Frame as standard and SS optional
• Aluminium frame with safety glass/ acrylic window
• CS/SS 304/SS 316 bolts
• Cast Steel epoxy painted gland housing
