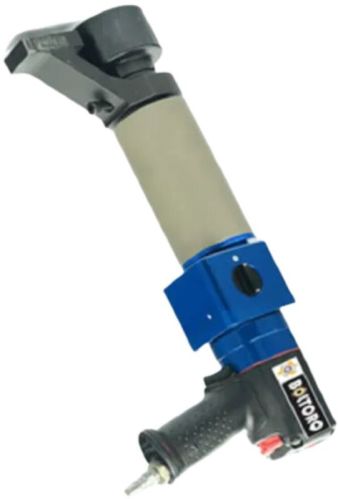

BOLTORQ Pneumatic Torque Wrenches, Weight : 18.8 kg

Listing ID #7534014

Two Speed Pneumatic Torque Wrenches specifications

• Powered by the reliable Ingersoll Rand(IR) Air Motor
• Light and Compact Design, Suitable for a Variety of Applications
• Two working mode selection:low speed and high speed
• Heavy Duty Gear Box for Longer Operational Life
• Low Noise Level with No Vibration
• Torque output is consistently repeatable
• Accuracy over +/- 5%
• Variety of Custom Reaction Arms Available Per Customers Requirement
• Two Years Warranty

BT-PD series Pneumatic Torque Wrenches are available

• Square Drive: 3/4" to 1.1/2"
• Torque Range: 142 NM to 12200 NM
• Output Accuracy : +/- 5%
• Repeatability : +/- 2%
• Duty Cycle: 100 %
• M/C weight: 4.9 kg to 18.9kg
• RPM: 28 to 1.4

Pneumatic Torque Wrench by BOLTORQ
Overview:BOLTORQ's robust pneumatic torque wrenches deliver unparalleled performance, meeting the demands of diverse industrial applications with precision, power, and durability.
Key Features:1. Powerful Pneumatic Performance:

• Operates with 6 Bar compressed air, ensuring sufficient power for torque application.
• Low air consumption of 600L/min under maximum power, optimizing efficiency.
• Delivers powerful torque output with minimal noise, maintaining noise levels under 80dBA even at maximum power.

2. Precise Torque Control:

• Torque settings are easily adjusted by regulating air pressure on the air register, providing ±5% accuracy and ±1% repeatability.
• Optional digital air register offers enhanced precision with ±3% torque accuracy and ±1% repeatability, catering to stringent torque requirements.

3. Compact and Efficient Design:

• Compact planet design ensures a smaller footprint while maintaining a high torque-to-weight ratio, facilitating easy handling and maneuverability.
• Equipped with a 4-way power control system, allowing for versatile torque application across a wide span.
• Features a 7-vane high-performance air motor for efficient torque output without impact, ensuring continuous operation under heavy workload conditions.

4. Versatile Operation:

• Reverse pressure-bias motor design provides maximum power and torque in reverse mode, ideal for loosening bolts.
• Positive/reverse button enables single-handed operation, enhancing user convenience and efficiency.
• Suitable for continuous operation in high workload environments, ensuring reliable performance.

Variants:1. Vertical Wrench:

• Designed for applications where vertical torque application is required.
• Ideal for various industrial settings, including assembly lines and maintenance operations.

2. Angled Wrench:

• Suited for tasks in limited working spaces, offering enhanced maneuverability and accessibility.
• Features a low noise motor for quieter operation without compromising performance.

3. Single Speed Wrench:

• Offers preset torque settings with ±5% accuracy and ±3% repeatability.
• Portable and durable design makes it suitable for continuous working in production assembly and maintenance.

Example of Operation:BOLTORQ's BTP SERIES pneumatic torque wrenches, featuring INGERSOLL RAND air motors and a digital torque control system, offer precise and repeatable torque output for diverse industrial applications with ease of handling and low noise technology.
Experience the next level of precision, power, and efficiency with BOLTORQ's Pneumatic Torque Wrenches, designed to exceed your expectations in industrial tightening and loosening operations.
