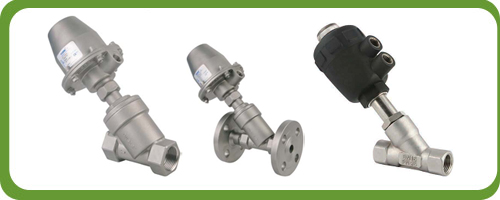

Pneumatic Angle Type Piston Valves, For Water, Air, Steam, Gas, Natural Gas, Chemical Fluids, Food

Pressure0 bar to 40 bar
ApplicationWater, Air, Steam, Gas, Natural Gas, Chemical Fluids, Food, Sterilization, Water Treatment, alcohol, hydraulic liquids, salt solutions, acids, organic solvent etc.
TypePneumatic Actuated Angle Seat Piston Valve
BodyAll body AISI 316 stainless steel
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

TypePneumatic Actuated Angle Seat Piston Valve
ApplicationWater, Air, Steam, Gas, Natural Gas, Chemical Fluids, Food, Sterilization, Water Treatment, alcohol, hydraulic liquids, salt solutions, acids, organic solvent etc.
Pressure0 bar to 40 bar
SealsPTFE
Way2/2 way
Connection1/8” to 2” / BSP, NPT / Screwed, Flanged, Welding
Max. Operating Pressure16 bar, 40 bar
Air Supply Connection1/4” G
On requestNPT screwed connection
Temperature-10 to 180 °C
FunctionNormally Closed, Normally Open
Working Temperature-10˚C to +180˚C
Recommended Control Air Supply4-6 bar
BodyAll body AISI 316 stainless steel
ConnectionScrewed G (BSP), Welding, Flanged.
Sealing materialPTFE (opsiyonel Viton, EPDM)
