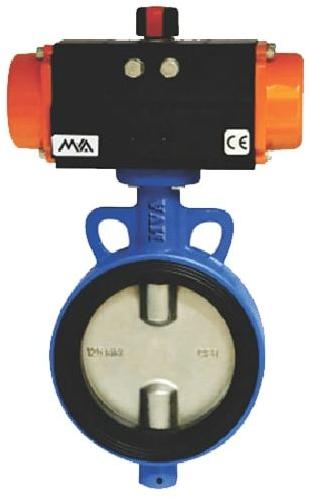

Pneumatic Actuator Operated Butterfly Valve

Listing ID #6384427

Get Latest Price

MOQ 1 Piece
Brand NameMVA
Valve DiscCF8 / CF8M / CF3M / S.G. Iron / Teflon Coated / Powder Coated” Nylon Coated / Rubber Line
Valve Seat LeakageTight shut off
Valve OperationHand lever for sizes from 40 mm to 350 mm, Worm gear boxes for 40 mm to 1000 mm
Supply Type Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Brand Name MVA
Actuator Pneumatic Connections NAMUR Standard
Valve Seat EPDM / Nitrile / Hayplon / Viton / Moulded or Replaceable muffler type
Valve Disc CF8 / CF8M / CF3M / S.G. Iron / Teflon Coated / Powder Coated” Nylon Coated / Rubber Line
Valve Seat Leakage Tight shut off
Valve Shaft AISI 410 / CF8 / CF8M / CF3M
Valve Type Centric Disc Butterfly Valve with a Single Piece Rubber Lined Body
Valve Body I.C. / Cl (IS 210 Gr. FG 200 / 220) WCB / S.S. 304 / S.S. 316
Valve Oper. Temp. range -25 °C to 130 °C (depending on MOC)
Actuator Mounting Std. ISO 5211 An International Standard
Actuator Actuation Double Acting / Single Acting (Spring Return)
Valve Operation Hand lever for sizes from 40 mm to 350 mm, Worm gear boxes for 40 mm to 1000 mm
Valve Ball ASTM A351 Gr. CF8 / CF8M
Valve Body Type Short wafer (sandwiched between flanges)
Actuator Type Rack and Pinion Type
Size Range 1/2″ to 40″
Valve Pressure rating PN 10 /PN 16 (On Request)
Valve Seat Type Integrally moulded with the body
Valve End Connection Wafer Sandwiched (Lug Type On Request)

“MVA” offers Cast Iron and Cast Steel body with CF8 / CF8M / CF3M disc butterfly valve with on-off and MVA modulating type manual, pneumatic and motorized operation.

Details

Item	Type of Test	Hydro Testing Pressure	Operating Temperature (Normal)	Operating Temperature (High)
Actuator	Pneumatic Bubble Test	180 to 150 PSIG	-20°C to 80°C	High Temp. On request
Valve Body	Hydraulic	300 PSIG	Max. 80°C	High Temp. On request
Seat	Hydraulic	228 PSIG	Max. 80°C	High Temp. On request
