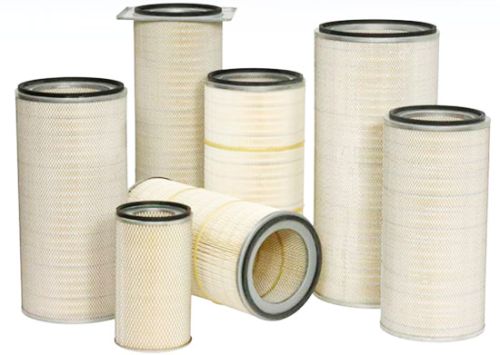

Pleated Bag Filters

Listing ID #3457450

Pleated Bag Filters
We are successfully ranked amongst the top manufacturers and suppliers of a qualitative range of Pleated Bag Filters. Fabricated using optimum quality factor inputs and sophisticated technology, they are designed in compliance with the international standards. These filters are widely praised among our valuable clients for their easy installation, leak proof nature and high durability. Apart from this, they are stringently tested on various parameters of quality in order to deliver flawless range at clients’ end.
Description:
Pleated Filter Bag features a unique filter design that can be retrofitted into the existing bag collector thus increasing the volume of air passing through each bag
The increased air capacity of the filter is due to a greater surface area
The Pleated Bag features a PU flange at the top & bottom and has an integrated inner core made of metal
All the filter mediums used in the pleated bag are of polyester
The installation procedure is simple and the part is made of Synthetic material which prevents damages that may occur when other components are utilized
Pleated bag filter have the following:
Easy to install
Easy to remove
Leakage prevented
Stable and cannot break or fall through the sheet
The filter area is 2-4 times larger than that of traditional bags
These bags can withstand temperature up to 130 deg. Centigrade
High air to cloth ratio and a high dust load capacity
Open pleat spacing
Low consumption of air during cleaning process
High efficiency due to surface filtration
Specifications:
Clapboard: with Clapboard
Filter Number: Customized
Medium Material: Microfiber
Efficiency: 5μm
