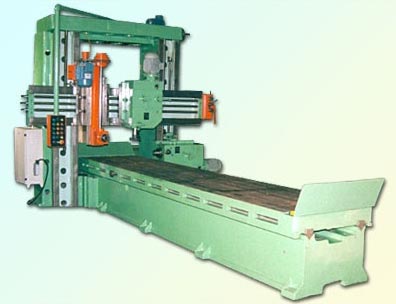

Contact SupplierPlano Milling Machine is suitable for machining components made up from ferrous and non-ferrous and similar metals. We are a notable Plano Milling Machine, Plano Miller Machine, Automatic Plano Miller Manufacturer, Supplier and Exporter based in Punjab, India. Plano Milling Machine differs in capacity as per the basic structure and other dimensions. Plano Milling Machines can also be designed as per the requirement of the customers.
Model No | AXIS-PMM 8 | AXIS-PMM 10 | AXIS-PMM 12 | AXIS-PMM 16 | AXIS-PMM 20 | AXIS-PMM 24 | AXIS-PMM 27 | AXIS-PMM 30 | AXIS-PMM 44 |
---|---|---|---|---|---|---|---|---|---|
Capacity | |||||||||
Stroke of Machine | 2,400 MM | 3,000 MM | 3,600 MM | 4,800 MM | 6000 | 7,200 MM | 8,000 MM | 9,000 MM | 13,000 MM |
Max. Width Between Up Right | 4’ | 5’ | 6’ | 6’ | 6’ | 6’ | 7’ | 7’ | 5’ |
Max. Height Under Cross Rail | 4’ | 5’ | 5’ | 6’ | 6’ | 6’ | 6’ | 6’ | 5’ |
Table | |||||||||
Stroke of Table | 8’ | 10’ | 12’ | 16 | 20’ | 24’ | 27’ | 30’ | 44’ |
Length of Table | 9’ | 11’ | 13’ | 17’ | 21’ | 25’ | 28’ | 31’ | 45’ |
Bed | |||||||||
Length of Bed | 12’ | 15’ | 18’ | 24’ | 30’ | 36’ | 42’ | 45 | 68’ |
Pillar/cross Rail | |||||||||
Face of Pillar | 11” | 13” | 18” | 20” | 20” | 20” | 20” | 20” | 13” |
Width of Cross Rail | 15” | 18” | 20” | 20” | 24” | 24” | 24” | 24” | 18” |
Milling Head , Gear Box and Electrical | |||||||||
Universal Milling Head | 5 H.P | 5 H.P | 7.5 H.P | 10 H.P | 15 H.P | 15 H.P | 15 H.P | 15 H.P | 7.5 H.P |
Reduction Gear Box | 3 H.P | 3 H.P | 5 H.P | 5 H.P | 7.5 H.P | 7.5 H.P | 7.5 H.P | 7.5 H.P | 7.5 H.P |
Cross Rail Feed Gear Box | 2 H.P | 2 H.P | 2 H.P | 3 H.P | 3 H.P | 3 H.P | 3 H.P | 3 H.P | 2 H.P |
Automatic Lifting Attachment | 2 H.P | 2 H.P | 2 H.P | 3 H.P | 3 H.P | 3 H.P | 3 H.P | 3 H.P | 2 H.P |
Milling Head Speeds | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Milling Head Speed Range | 120-500 | 120-500 | 120-500 | 100-400 | 75-300 | 75-300 | 75-300 | 75-300 | 120-500 |
Reduction Gear [No of Feeds] | 18 | ||||||||
Reduction Gear Box [range of Feeds] | 20 MM TO 300 MM PER MINUTE |
