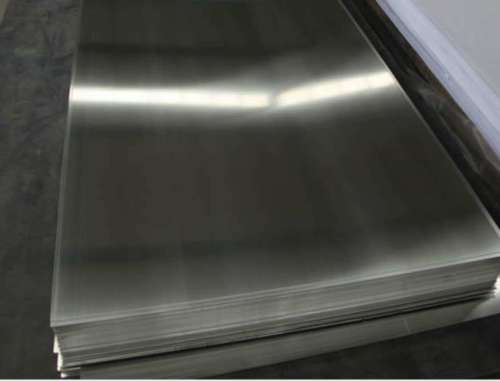

Contact Supplierwe make available, high-quality aluminium sheets, which are dimensionally stable and have a high tensile strength. these aluminium sheets are commonly used from industrial applications and can be availed in different shapes and sizes.
aluminium alloys 7075 bare plates specifications : uns a97075, aluminum 7075, 7075 alloy, 7075 aluminum alloy, aa7075 aluminium alloys 7075 bare plates
available forms : 7075 aluminum sheet, 7075 aluminum plate, 7075
aluminum bar temper : 7075-0, 2014-t6, 7075-t73, 7075-t76, 7075-t651, 7075-t7351, 7075-t7651
Chemical Element | % Present |
---|---|
Silicon (Si) | 0.0 - 0.40 |
Iron (Fe) | 0.0 - 0.50 |
Copper (Cu) | 1.20 - 2.00 |
Manganese (Mn) | 0.0 - 0.30 |
Magnesium (Mg) | 2.10 - 2.90 |
Chromium (Cr) | 0.18 - 0.28 |
Zinc (Zn)) | 5.10 - 6.10 |
Titanium (Ti) | 0.0 - 0.20 |
Other (Each) | 0.0 - 0.05 |
Others (Total) | 0.0 - 0.15 |
Aluminium (Al) | Balance |
Diameter (mm) | Proof Strength (Min) | Tensile Strength (Min) | Elongation % (Min) |
---|---|---|---|
Up to & incl. 6.3 | 400 | 469 | 7 |
Over 6.3 up to & incl. 38 | 420 | 483 | 8 |
Over 38 up to & incl. 76.2 | 407 | 476 | 8 |
Over 76.2 up to & incl. 114 | 393 | 469 | 7 |
Density | 2.81 g/cm3 |
---|---|
Melting Point | 635oC |
Thermal Expansion | 23.5 x10^-6 /K |
Modulus of Elasticity | 72 GPa |
Thermal Conductivity | 134-160 W/m.K |
Electrical Resistivity | 40 % IACS |
