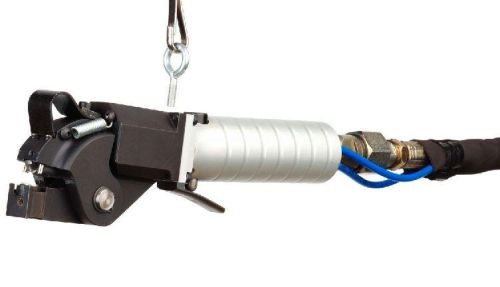

The Pirana is an extremely light clamp able to join metal sheets up to 2,0 mm of total thickness. Its lightness and compactness make it a versatile and handy machine able to adapt to a wide range of situations, also thanks to possibility to have alignment of the head in three different settings relative to the axis of the handle: straight, staggered and at 90°. Its field of application, extremely various, extends, for example, from the production of metal furniture to the refrigeration sector. Pirana is a clinching tool that can be supplied with balancer and is able to perform both trapezoidal and round clinching points.

Technical description

• Weight of the clamp (including handle) – 2,0 kg
• Total weight together with Booster – 10,3 kg
• Max air pressure – 6 bar
• Max hydraulic pressure – 360 bar
• Thrust – 25 kN
• Cycle time – 0,8 s
• Max total sheet thickness mild steel – 2,0 mm
• Max total sheet thickness stainless steel- 1,6 mm

The Pirana is an extremely light clamp able to join metal sheets up to 2,0 mm of total thickness. Its lightness and compactness make it a versatile and handy machine able to adapt to a wide range of situations, also thanks to possibility to have alignment of the head in three different settings relative to the axis of the handle: straight, staggered and at 90°. Its field of application, extremely various, extends, for example, from the production of metal furniture to the refrigeration sector. Pirana is a clinching tool that can be supplied with balancer and is able to perform both trapezoidal and round clinching points.

Technical description

• Weight of the clamp (including handle) – 2,0 kg
• Total weight together with Booster – 10,3 kg
• Max air pressure – 6 bar
• Max hydraulic pressure – 360 bar
• Thrust – 25 kN
• Cycle time – 0,8 s
• Max total sheet thickness mild steel – 2,0 mm
• Max total sheet thickness stainless steel- 1,6 mm
