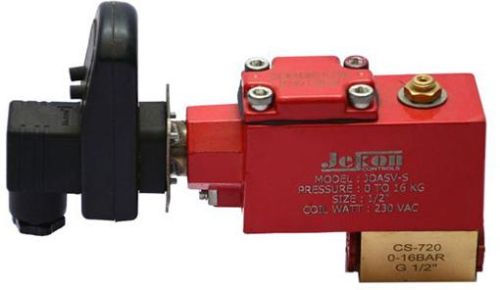

Pilot Operated Direct Acting Solenoid Valve

Pilot Operated Direct Acting Solenoid Valve

Listing ID #6097093

Get Latest Price
  • Port Size1/2″ BSP / NPT
  • Operating VoltageAC : 230V, 110V, 48V, 42V, 24V. DC : 12V, 24V
  • Body MaterialAluminum / Brass / SS-304 / SS-316
  • Type2 Port, 2 Posion (NC/NO)
  • Supply Type Manufacturer, Exporter, Supplier, Trader
  • Preferred Buyer Location All over the world
View More Details
Send Enquiry

Company Information

Jekon Controls
Saraspur, Ahmedabad, Gujarat
View Number
  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Port Size 1/2″ BSP / NPT
  • Media Temperature -10 °C to 250 °C
  • Power Consumption AC : 8W, 12W, 17W. DC : 8W
  • Type 2 Port, 2 Posion (NC/NO)
  • Body Material Aluminum / Brass / SS-304 / SS-316
  • Media Air, Water, Gas, Light Oil, Vacuum Hot, Oil, Steam
  • Circumference Temperature -10 °C to 95 °C
  • Operating Voltage AC : 230V, 110V, 48V, 42V, 24V. DC : 12V, 24V

Dimension (mm)
Model No. Port Size A B C D E
S.S.304 1/4″ 50 92 51 102 51
Aluminum 1/4″ 40 74 32 90 73
Brass 1/4″ 46 64 36 76 79
S.S.304 1/2″ 50 92 51 108 51
Brass 1/2″ 46 64 36 76 79
  Technical Data Sheet
2/2 way pilot operated direct acting valve
MODEL NO. BODY  MATERIAL PIPE (INCH) ORIFICE (mm) Min. Operating Pressure kg/cm2 Max. Operating Pressure kg/cm2 Seal & Diaphragm Material Flow Factor Kv m3/hr
JDASV Aluminum 1/4″ 2 0 10 NBR 0.08
JDASV SS-304 1/4″ 4 0 15 NBR 0 .30
JDASV SS-304 1/4″ 2 0 150 NBR 0 .30
JDASV SS-304 1/4″ 3 0 10 NBR 0.36
JDASV SS-304 1/2″ 2 0 150 NBR 0 .40
JDASV SS-304 1/2″ 3 0 10 SILICON/NBR 3 .20

3/2 way pilot operated direct acting valve
JDASV Aluminum 1/4″ 2 0 10 NBR 0.08
JDASV SS-304 1/4″ 4 0 10 NBR 0 .30
JDASV SS-304 1/4″ 2 0 30 NBR 0 .30
JDASV SS-304 1/2″ 4 0 10 NBR 0.36
JDASV SS-304 1/2″ 4 0 40 NBR 0 .40
