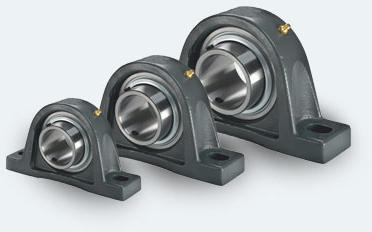

Pillow Block Bearings

Listing ID #3943549

A RAS pillow block, also known as a plummer block or bearing housing, is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Housing material for a pillow block is typically made of cast iron or cast steel.

The fundamental application of both types is the same which is to primarily mount bearings safely enabling their outer ring to be stationary while allowing rotation of the inner ring. The housing is bolted to a foundation through the holes in the base. Bearing housings are either split type or unsplit type. Split type housings are usually two piece housings where the cap and base can be detached, while certain series are one single piece housings. Various seals are provided to prevent dust and other contaminants from entering the housing. Thus the housing provides a clean environment for the expensive bearings to freely rotate, hence increasing their performance and duty cycle.

Pillow blocks are usually referred to the housings which have a bearing fitted into them & thus the user need not purchase the bearings separately. Pillow blocks are usually mounted in cleaner environments & generally are meant for lesser loads of general industry. These differ from "plummer blocks" which are bearing housings supplied without any bearings & are usually meant for higher load ratings & corrosive industrial environments. However the terms pillow-block & plummer-block are used interchangeably in certain parts of the world.
