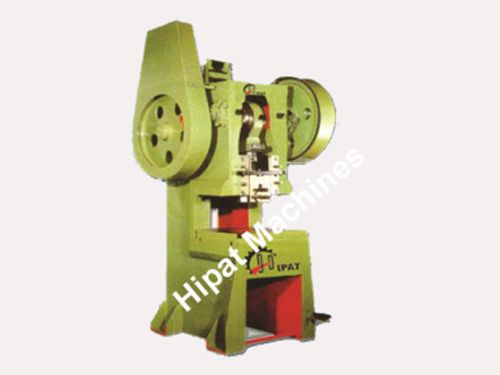

Pillar Type Power Press Machine

Listing ID #3850525

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The clutch is of Rolling key type & gives continuous strokes for mass production. Crank shaft is made of special Alloy Steel and fitted in with Gun Metal bushes for smooth

View More Details

Send Enquiry

Product Details

Technical Specifications

		10 Tons	30 Tons	50 Tons	75 Tons	100 Tons	150 Tons	200 Tons	250 Tons
Wed to Ram Bottom	mm	203	254	305	356	406	432	483	610
Bed	mm	305*320	460*460	406*510	535*587	610*660	635*710	730*810	855*910
Stroke	mm	63	76	89	102	115	127	140	152
Crank Shaft Dai	mm	76	102	127	153	178	190	203	229
Gear Dai	mm	450	610	660	760	856	956	1120	1270
Fly Wheel Dai	mm	555	710	865	965	1015	1120	1325	1425
Hole in Ram For Die Clamping	mm	25	28	32	37	44	50	50	63
Floor to top of Bed	mm	635	762	762	762	762	762	762	813
Over All Height Without Motor	mm	1473	1651	1980	2133	2387	2590	2793	3175
Floor Area Required	mm	762*635	901*672	990*799	1041*825	1270*1016	1371*1056	1409*1078	1510*1053
No of Strokes Per Minute	mm	70	60	55	50	40	35	30	28
Motor Power Required in HP		2	3	5	5	7.5	10	15	20
R.P.M Required		1440	1440	1440	1440	1440	1440	1440	1440
App. Wt. In	Kgs.	800	1200	2000	3100	4200	6000	9000	11000

OPTIONAL ACCESSORIES	STANDARD ACCESSORIES	APPLICATIONS
1. MOTOR	1. STROKE ADJUSTMENT SPANNER	1. Automobiles
2. DIGITAL READ OUT	2. MOTOR PLATE	2. Die & Mould Manufacturers
3. STROKE COUNTER	3. TOOLKIT	3. Aerospace
		4. Medical Equipment
		5. Textile Machinery
		6. Diamond & Jewellery Industries
		7. Allied Machinery
		8. Plastic Processing Machinery
		9. Defence
