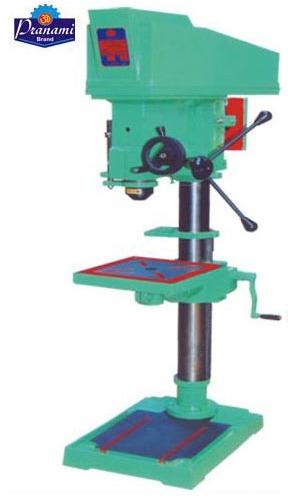

Contact SupplierWith the great industrial experience, we manufacture and supply the supreme quality Pillar Drilling Machine (25 mm) that finds wide application in the Construction industry. Our wide variety of Pillar Drilling Machine is fabricated with utmost care to ensure long service life without any hassle. The valuable clients can buy this Pillar Drilling Machine at the most competitive rate from us.
Drilling Capacity in M.S | 1" | 25mm |
---|---|---|
Spindle Centre to Pillar Face | 9" | 228mm |
Spindle Travel | 6" | 153mm |
Size of Table Square | 12" x 12" | 285mm |
Size if Table Round. | 14" | 335mm |
Over all Height of Machine | 65" | 1625 mm |
Distance from Spindle to Base | 40" | 1000mm |
Pillar Diameter | 3 1/2" | 90mm |
Machined Area of Base | 23" x 15" | 575x375mm |
Overall Dimension of Base | 21" x 15"Â | 535x380mm |
Bore in Spindle | MT3-MT4 | - |
Speed | (4+4) 90 to 3200 RPM | - |
Motor Speed | 1440 RPM | - |
Motor | 1 H.P. | - |
V-Belt | B-46 | - |
Weight of Machine without Motor | 200 Kg. (Approx.) | - |
