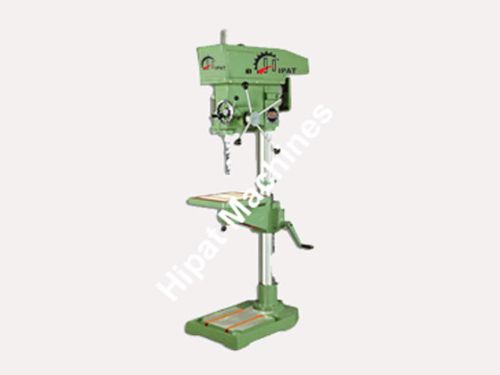

Pillar Drill Machine

Listing ID #3850412

Get Latest Price

Table Size (in mm)260 x 260
Range of Speed (RPM)80 to 3500
Motor1440 RPM 3 Phase440 volts0.5 HP
V-Belt sectionA – 44″
Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Product Details

Shipping Wooden Case Inner Size LxWxH (in mm) 660x380x1140 mm
Distance from spindle center to pillar surface 200 mm ( MAX )
Range of Speed (RPM) 80 to 3500
Base size (Machined Area mm) 470 x 320
Spindle Travel 130 mm
Overall height with pulley guard 1420 mm
Weight (Approx.) 110 kg.
Tilting working table Upto 360°
Pillar Diameter 74.30 mm
Number of speed 8 Speed
Table Travel 200 mm
Pillar Length 1170 mm
Motor1440 RPM 3 Phase440 volts 0.5 HP
Taper in spindle MT -2
Overall Base Size (in mm) 490 x 310
Spindle nose to table distance 650 mm
Drilling capacity 20 mm
Table Size (in mm) 260 x 260
Distance from spindle nose to base distance 900 mm
V-Belt section A – 44″

Specification	Pillar Drill Machine HPD – 25
Tilting working table	FIXED
Drilling capacity	25 mm
Pillar Diameter	92 mm
Spindle nose to table distance	660 mm
Distance from spindle nose to base distance	1045 mm
Distance from spindle center to pillar surface	250 mm ( MAX )
Table Travel	480 mm
Taper in spindle	MT – 3
Number of speed	8 Speed
Range of Speed (RPM)	130 to 2600
Table Size (in mm)	330 x 330
Base size (Machined Area mm)	365 x 575
Overall Base Size (in mm)	370 x 580
Spindle Travel	180 mm
Pillar Length	1410 mm
Overall height with pulley guard	1730 mm
V-Belt section	B – 52″
Weight (Approx.)	225 kg.
Motor1440 RPM 3 Phase440 volts	1 HP
Shipping Wooden Case Inner Size LxWxH (in mm)	850x450x1770 mm

Specification	Pillar Drill Machine HPD-40
Tilting working table	FIXED
Drilling capacity	40 mm
Pillar Diameter	135 mm
Spindle nose to table distance	495 mm
Distance from spindle nose to base distance	1000 mm
Auto feed speed	(applies to PSL-40A only) 0.04 or 0.08
Distance from spindle center to pillar surface	380 mm ( MAX )
Table Travel	500 mm
Taper in spindle	MT – 4
Number of speed	8 Speed
Range of Speed (RPM)	60 to 2000
Table Size (in mm)	490 x 490
Base size (Machined Area mm)	820 x 490
Overall Base Size (in mm)	825 x 495
Spindle Travel	250 mm
Pillar Length	1475 mm
Overall height with pulley guard	1840 mm
V-Belt section	B – 74″
Weight (Approx.)	500 kg.
Motor1440 RPM 3 Phase440 volts	2 HP
Shipping Wooden Case Inner Size LxWxH (in mm)	1200x540x1880 mm

OPTIONAL ACCESSORIES	STANDARD ACCESSORIES	APPLICATIONS
1. Electric Motor	1. AMotor Pulley	1. Tool Rooms
2. R & F Switch	2. Tapper Drift	2. Educational Institutes
3. Drill Chuck * Arbour / Slive	3. Manual Book	3. Workshops
4. Key-way Compound Slide	4. Drill-bit angle gauge	4. Rolling Mills Etc
		5. Small & Medium Scale Industries
		6. Fabrication Workshops
