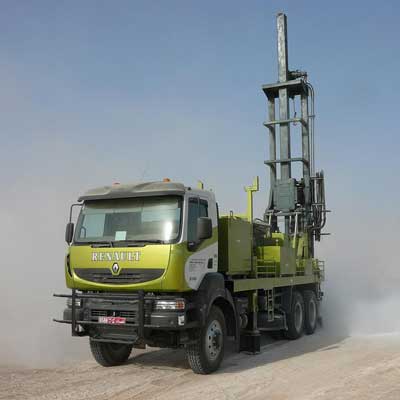

Piling Drill Rig

Listing ID #52536

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are a reputed Manufacturer and Supplier of Piling Drill Rig from Hyderabad, Andhra Pradesh. These Piling Drill Rigs are appreciated for their superior performance and durability among the clients. Owing to their special features, these Piling Drill Rigs are highly demanded among the clients.

View More Details

Send Enquiry

Product Details

Demanded For	Minimum maintenance Easy operation Superior quality High performance
Technical Specifications	El Drill hole of Maximum Diameter : 1066 mm (42") and Maximum Depth 5 Meters El Mast Has Overall Length of 8000 mm El Rotary Head of Maximum. Speed : 0-20 Rpm and Maximum Torque 2400Kgm Feed System has Pull Up capacity : 15000 Kgf and Pull Down capacity 5800 Kgf. El Prime Mover has engine of 260 ps @ 2100 rpm Stabilizer has Cylinder bore Diameter : 125mm and Stroke : 610mm EI Breakout Wrench has cylinder bore Diameter : 100 mm and Stroke 300 mm

Demanded For

Minimum maintenance
Easy operation
Superior quality
High performance

Technical Specifications

El Drill hole of Maximum Diameter : 1066 mm (42") and Maximum Depth 5 Meters
El Mast Has Overall Length of 8000 mm
El Rotary Head of Maximum. Speed : 0-20 Rpm and Maximum Torque 2400Kgm
Feed System has Pull Up capacity : 15000 Kgf and Pull Down capacity 5800 Kgf.
El Prime Mover has engine of 260 ps @ 2100 rpm
Stabilizer has Cylinder bore Diameter : 125mm and Stroke : 610mm
EI Breakout Wrench has cylinder bore Diameter : 100 mm and Stroke 300 mm

Company Details

We klr industries ltd as one of the leading manufacturer in india for water well drilling rigs, mining, construction equipments, piling equipments, pole erection equipments and its accessories like dth hammers, tc button bits, rock roller bits, udex systems, cluster hammers of different sizes, hand pumps, friction welded hardened drill rods, etc. We are an iso 9001:2008 certified company having global presence with our quality products and services.
