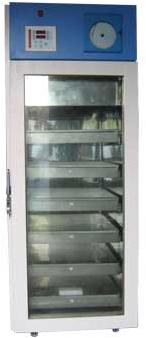

Contact SupplierWe are identified as one of roomiest pharmacy refrigerator manufacturers, exporters, and suppliers in india. The pharmacy refrigerator offered by us is made using high grade raw materials owing to which, it renders consistent performance for longer period of time. We provide pharmacy refrigerator at highly competitive prices.
cabinet construction
exterior crc steel epoxy powder coated body as well as interior cabinet from aisi-304 stainless steel bodyforce draft high efficiency cooling unit that allows positive air flow system to manage uniform inner cabinet temperature as well as effective cooling in unfavorable ambient conditionsolid insulated dooradjustable stainless steel wired baskets for keeping vaccinescastors for easy mobility with breaks in fronthigh density cfc-free foamed-in-place insulation designed s per international standardkey controlled door latch lock for added security
condensing unit
air cooled cfc-free refrigeration system having high cfm fanshermetically sealed industrial grade compressors for continuous operationambient temperature +32oc
control system
key operated power on/off switch.microprocessor based up 404 control system resolution to 0.1 c.set temperature and actual temperature read cut.rtd pt-100 sensor for accurate temperature sensingprovision for rs - 485 computer interfaceled indication and alarming systeminbuilt rechargeable battery backup system for temperature monitoring and recording in case of power failureinbuilt auto voltage transformer for protection against power fluctuationinput voltage; 150-230 v ac. Output voltage; 200-230 v ac
optional accessories
data cable with software for data managementseven days temperature chart recorder
Model No. | Capacity Liters / Bags 1 | Style / Drawrs | Ext. Dimensios (W* D * H) | Cureent A |
---|---|---|---|---|
DPRA -504 | 158 | Upright / 2 | 24"* 28"* 38" | 1.4 |
DPRA - 704 | 214 | Upright / 3 | 24"* 28"* 46" | 1.4 |
DPRA - 904 | 272 | Upright / 4 | 24'* 28"* 57" | 1.4 |
DPRA - 1104 | 330 | Upright / 5 | 24"* 28"* 65" | 2.5 |
DPRA - 1304 | 372 | Upright / 5 | 24"* 31"* 65" | 2.5 |
DPRA - 1804 | 510 | Upright / 5 | 29"* 32"* 67" | 4.5 |
DPRA - 2504 | 705 | Upright / 6 | 29"* 37"* 75" | 4.5 |
Parameters | LED Indication | Alarming |
---|---|---|
High Temperature | Yes | Yes |
Low Temperature | Yes | Yes |
High Voltage | Yes | Yes |
Low Voltage | Yes | Yes |
Power failure | Yes | Yes |
Condenser Clogged / fan Off | Yes | Yes |
Sensor fail | Yes | --- |
Safe temperature | Yes | --- |
Compressor On. | Yes | --- |
