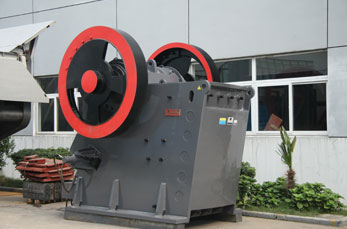

Contact SupplierPEW series Jaw crusher features big crushing ratio, reliable operation, easy maintenance and low operating cost. It is the new generation product designed and produced by Mining, basing on our 30 year’s crusher production experience and the latest design conception. It does be one high efficiency and low cost crushing machine.
Pretreatment: Using the hydraulic hammer to crush the big stone into smaller one, and arrange the worker to cut through the long reinforcement to prevent damaging the belt conveyor.
Model | Feed opening (mm) | Maximum feeding size (mm) | Range of discharge opening (mm) | Capacity (t/h) | Speed (r/min) | Power (kw) | Overall dimension (mm) |
PEW250×1000 | 250×1000 | 220 | 20-40 | 15-50 | 330 | 30 | 1400×1850×1310 |
PEW250×1200 | 250×1200 | 220 | 20-40 | 20-50 | 330 | 37 | 1400×2050×1310 |
PEW400×600 | 400×600 | 350 | 35-85 | 15-70 | 250 | 37 | 1920×1460×1840 |
PEW760 | 760×1100 | 640 | 75-200 | 150-350 | 270 | 110 | 2600×2500×2200 |
PEW860 | 860×1100 | 720 | 100-225 | 200-500 | 240 | 132 | 3300×2320×3120 |
PEW1100 | 1100×1200 | 930 | 150-275 | 300-650 | 210 | 185 | 4140×2660×3560 |
