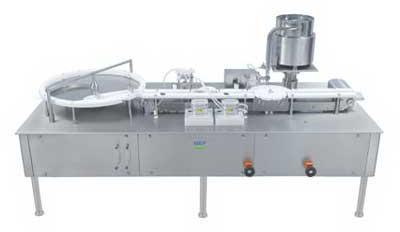

Peristaltic Pump Filling Machine

Peristaltic Pump Filling Machine

Listing ID #36725

Get Latest Price
  • Supply Type Manufacturer, Exporter, Supplier
  • Preferred Buyer Location All over the world

We are offering automatic two head peristaltic pump type filling machine. These peristaltic pump fillers are designed for automatic filling of pulp purees, edible oil, honey, semi viscous liquids and....
View More Details
Send Enquiry

Company Information

N.K.P. Pharma Pvt. Ltd.
Vatva, Ahmedabad, Gujarat
View Number
  • Member Since 21 Years
  • Nature of Business Retailer
  • Year of Establishment 1988

Ask for more detail from the seller

Contact Supplier
View Company Details

Product Details no_img_icon

We are offering automatic two head peristaltic pump type filling machine. These peristaltic pump fillers are designed for automatic filling of pulp purees, edible oil, honey, semi viscous liquids and dairy products with high accuracy. The pump speed of these machines depends on filled volume / bulk density of material. This machine comes with a pick and place type rubber stoppering which allows tom fill and refill with ease and without any leakage. Sturdy and strong these machines are corrosion resistant and give flawless performance for a long time to come.

Technical specifications
  • Total cGMP Model
  • .S. Angle Frame duly clad
  • S.S. 304 Solid Top Plate
  • S.S. 316L cladding on Top Plate
  • Machine can handle vial range from 2 ml. to 100 ml. & Rubber stopper of 13 mm, 20 mm & 32 mm size (With the help of change parts)
  • Suitable for Isolator fittings
  • Air tight sealing of all pneumatic / Electrical / Electronics & Mechanical moving assemblies.
  • â No Vial No Filling Systemâ
  • âMinimum Vial at in feed & maximum vial accumulation at out feed, machine stop and auto restart
  • âNo rubber stopper in chuteâ
  • â No Vial no rubber stopper
  • Toppled Vial at in feed Turn Table vial rejection system
  • Specialized Food grade conveyor belt
  • Delrin guide rails at in feed Turn Table and conveyor which allow smooth transfer of vials during all operations.
  • Pre & Post gassing system
  • â No Vial no gassing systemâ
  • Nitrogen pressure can be adjusted from HMI
  • â Low Nitrogen pressureâ machine stop system
Applications
  • Edible oil industries
  • Honey manufacturers
  • Sauce manufacturers
  • Other food industries


Specfications

Model No.NKLFRS-60i
DirectionLeft to Right
Production RateUpto 50 - 60 Vials/Min. (For 5 ml. Fill size)
Fill Capacity1 ml. to 100 ml (Single Dose)
No. of PumpsTwo
Accuracy± 1 %
Electrical Supply4.5 HP
Power requirement415 Volts, 3 Phase (4 wire system) 50 Hz.
Height of ConveyorAdjustable from 900 mm to 950 mm
Dimensions2600 mm (L) x 1100 mm (W) x 1600 mm (H)
Net Weight500 Kgs. (Approx.)
Gross Weight650 Kgs. (Approx.)
Type of Rubber StopperingPick & Place
No. of Stoppering HeadSingle

Company Details close-icon

NKP Pharma is a world leader in the field of designing and manufacturing pharmaceutical packaging machineries. Our wide ranges of pharmaceutical machineries are equipped with most advanced features for broad spectrum of industry applications. “NKP” deals in complete range of packaging machineries right from Vial Washing Machine upto Labelling Machine for Injectable Dry Powder , Injectable Liquid for Vials & Ampoules and Dry Syrup Powder Filling Line.
Our automatic linear vial washing machine is available in different models as per the standard and custom requirements. Injectable dry powder filling with rubber stoppering machine and double head auger type dry syrup powder filling machine from NKP are highly accurate and used for various sizes of vials and bottles. Injectable liquid filling with rubber stopper machine, vial sealing machine, external vial washing & drying machine, Vial inspection machine, self adhesive vertical labelling machine, offline carton coding machine with inspection and rejection system are some of our pharma equipments highly demanded in India and across the globe. We also cater variety of Pharmaceutical accessories including swing conveyor, fix conveyor, lifting device, swing type wire mesh conveyor and many more at the most attractive rates to our worldwide clients. We are dedicated to provide best technology Pharma machines with industry best services. Our equipments are manufactured from sturdy raw materials to work for longer duration with low maintenance. We focus more on our client satisfaction with the best usages of our machines. If you are looking for Pharma Packaging Machineries, we will be the one stop solution for all your pharmaceutical packaging needs
