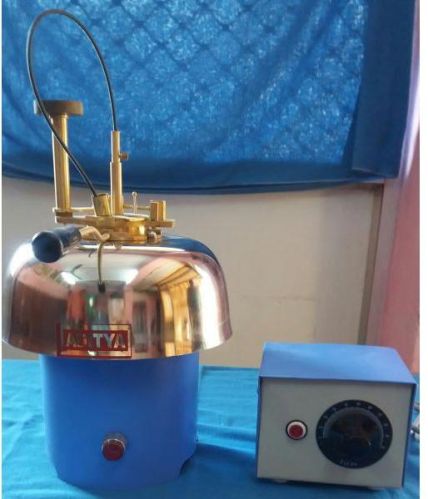

This apparatus is made as per IP 34, ASTMD-93 and IS 1448 (Part I) 1270 (P.21) and IS 1209-1953 method B. Used for finding out Flash Point above 70 °C and below 300° C. The Instrument having Oil Test Jet/Gas
Test Jet Flame Device, stirrer with flexible shaft. The Assembly rests in Air Bath which is covered with Dome shape metal top. The cup is fitted with insulated Handle and locking arrangement near Cup flange. The assemble is kept on round shape electric heater with Seperate temp.regulator. Suitable for operation on 220 Volts 50 cycles AC Circuits
RAP 125 - P. M. Flash Point App. Elect. Heated with Energy Regulator Oil Test Jet
RAP 126 - -- Same as above -J Elect. Heated With Concealed Hot Plate & Oil Test Jet
RAP 127 - P. M. Flash Point App. with Electronic Temp. Indicator and Regulator Oil Test Jet
RAP 128 - P. M. Flash Point App. Elect. With energy Regulator, Geared Motor Stirrer (120 R.P.M.) Oil Test Jet
RAP 129 - Pensky Martens Flash Point App. with Electronic voltage Variac and Digital Temp. Indicator and Constant Speed. Stirring device Oil Test Jet
RAP 130 - Semi Automatic Flash Point Apparatus with Electronic Temp. Controller, Automatic Dipping cycle with Remote Control Oil Test Jet or Gas Test Jet.
RAP 131 - Fully Automatic Flash Point App. Micro Controller based with LCD Display Temp. Range form 80°C to 350 °C 0.°1c Direct Resolution. Automatic Stirrer Gas Test Jet System.
Request Note :
All above models can be supplied with \\\"Gas Test Jet\\\" system with Reducing Valve in place of Oil Jet Flame at extra cost.
OPTIONAL ACCESSORIES:
RAP 125 a - Openclip for Converting Close Model To Open Cup test Model as per IP 35
RAP 125 b - IP 15C Low range (-7/110°Cx0°5C) thermometer
RAP 125 c - IP 16C High range (90x370°Cx2°C) thermometer
RAP 125 d - Polish wooden case
RAP 125 e - Spare Cup with Handle
RAP 125 f - Spare Cover Assembly
RAP 125 g - Spare Nichrome heating element
