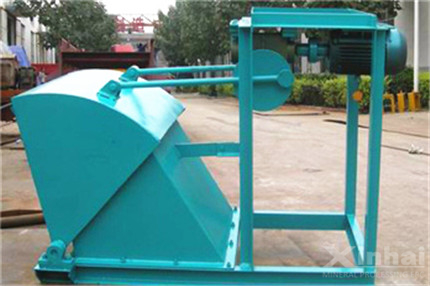

Contact SupplierA feeder with periodic reciproing motion for fine particles.Production capacity 4.525t/h.Product Improvement Worm gear reducer compact structure reliable sealing device.The machine is installed beneath the discharging opening of ore bin. Minerals fall in the ore feeding box from ore bin. When it works via coupler electric motor drive turbine reducer to operate the pendulum plate of chute begin the reciprocal movement through eccentric wheel on the output shaft of turbine reducer. So the mineral feeding Process is finished. The mineral feeding quantity can be controlled by adjusting eccentric wheel or regulating the revolving speed of motor.
Product FeaturesPendulum feeder is installed under the storage tank or hopper to convey the materials with particle size less than 50mm and the materials that are dry and not easy to agglomerate such as ore stones coal blocks etc. It is not suitable to convey powder which is easy to block feeding and makes powder fly.
Product AppliionThe pendulum feeder is suitable for crushing and screening.In the production Processit conveys the blocky granular materials uniformlyperiodically and continuously from the storage bin to the next device. It is widely used in metallurgy mining ore dressing building materials chemical industry combined equipment and it has the advantages of simple structure low price convenient repair and operation etc.
Model | Inlet (LXW) (mm) | Outlet (LXW) (mm) | Stroke of Eccentric Wheel (mm) | Frequency (n/min) | Max. Feed Size (mm) | Feed Capacity (t/h) | Motor Model | Motor Power (kW) | Rotating Speed of Motor (r/min) | Weight (kg) |
BG250X250 | 250X250 | 250X(30~125) | 0~90 | 46 | 25 | 4.5 | Y80L-4 | 0.55 | 1390 | 130 |
BG300X300 | 300 X300 | 300X(30~125) | 0~90 | 46 | 30 | 6.5 | Y802-4 | 0.75 | 1390 | 150 |
BG400X400 | 400X400 | 400X(50~130) | 0~170 | 45.5 | 35 | 12 | Y90S-4 | 1.1 | 1410 | 300 |
BG600X600 | 600 X600 | 600 X (50~150) | 0 ~157 | 48 | 50 | 40 ~80 | Y100L-4 | 1.5 | 940 | 450 |
